Semi-automatic assembly machine PARFLANGE 1025
fittingcompact

semi-automatic assembly machine
semi-automatic assembly machine
Add to favorites
Compare this product


Characteristics

Operational mode
semi-automatic
Applications
fitting
Other characteristics
compact

Description

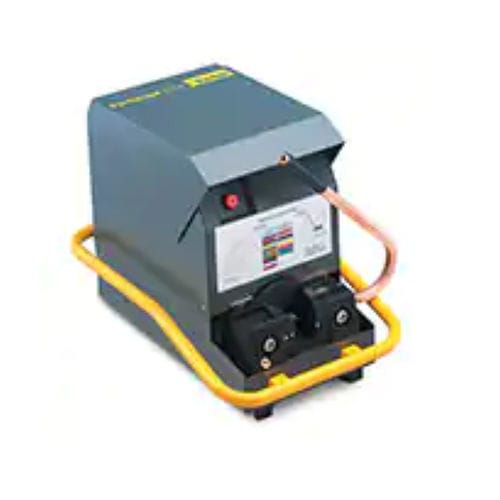

Parker's Parflange® 1025 produces fast, high-quality 90° flange and 37° flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Parker's Parflange® 1025 produces fast, high-quality flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, it produces high-quality, consistent flanges and flares with a smooth mating surface in less than 25 seconds. Parflange technology créâtes a compétitive advantage for our customers through fast, consistent, and reliable leak-free connections which resuit in reduced costs and additional revenue. Features/Benefits: •Produces a high-quality flange with smooth mating surface in less than 25 seconds (up to 1 v2" OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end. •Portable bench or cart mounted machine. •Flanges and flares Steel and stainless Steel tube from 1/4" up to 1V OD. Applications: •Flanging and flaring Steel and stainless Steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications. Technical Characteristics: •Available in 100-volt single-phase or440-volt 3-phase (must specify upon ordering). •Dimensions are 18" x 15” x 26" and weighs 175 Ibs.
