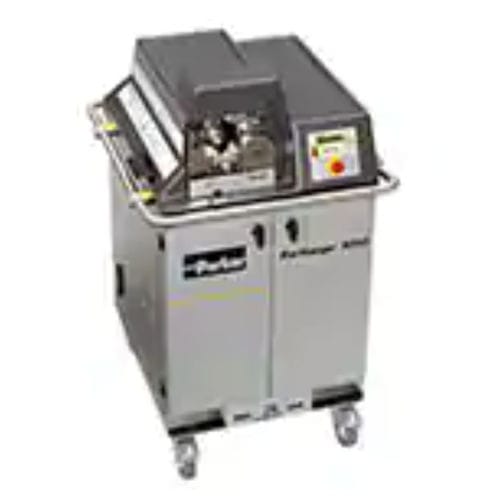

Automatic assembly machine PARFLANGE 50

fitting

Parker's Parflange® Pro 50 provides high production, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Parker's Parflange® Pro 50 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, this high production machine produces high-quality, consistent flanges and flares with a smooth mating surface in less than 15 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue. Features/Benefits: • Produces a high-quality flange with smooth mating surface in less than 15 seconds (up to 1 ½” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end. • This high production machine features an automatic die-clamping mechanism, an automatic tool lubrications system and an automatic cycle start enhancement that is triggered by full tube insertion into the die housing. • An automatic sleeve loader option is available upon request. • Convenient workstation setup with tooling cabinet below the unit. • Flanges and flares steel and stainless steel tube from ¼” up to 1 ½” OD. • Also flanges stainless steel coiled tube sizes common in CNG applications. Applications: • Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications. Technical Characteristics: • Available in 440-volt 3-phase. • Dimensions are 33” x 28” x 41” and weighs 836 lbs.
