Hydraulic hose 387-4

polyimideagriculturalfor railway application

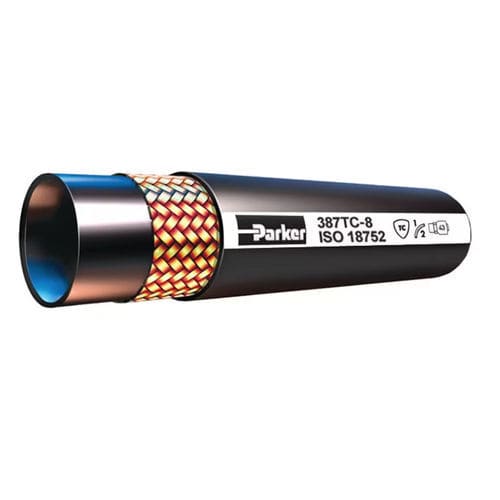

The Parker 387 GlobalCore hose is a constant working pressure hydraulic hose offering 3,000 PSI in all sizes. This light, durable, and easy-to-bend hose meets and exceeds ISO 18752 performance specifications. The 387 hose offers low force-to-flex and delivers full SAE-standard pressure at one-half SAE bend radius, resulting in easier handling and installation. 387 hose also offers a 30% smaller OD by area compared with SAE-standard spiral hose. Compatible with petroleum-based hydraulic fluids and lubricating oils, 387 GlobalCore hose is offered in sizes ranging from ¼-inch to 2 inches in diameter and with three cover options: Standard, ToughCover, and SuperTough. Markets: • Transportation • Military • Construction • Agriculture • Grounds & Building Maintenance • Waste & Refuse • Material Handling • Forestry • Railroad • Utility Equipment • Personal Lift Equipment • Machine Tool Features/Benefits: • Standard or ToughCover options to prevent abrasion • Half SAE bend radius for ease of installation and low force to flex • 30% smaller O.D. by area compared to the SAE spiral hose • 3,000 PSI constant working pressure in all sizes • Lighter than the standard SAE spiral hose Applications: • Petroleum base hydraulic fluids and lubricating oils Compatible Fittings: • 43 series fittings (for sizes -4 to -20) • 77 series fittings (for sizes -20 to -32)
