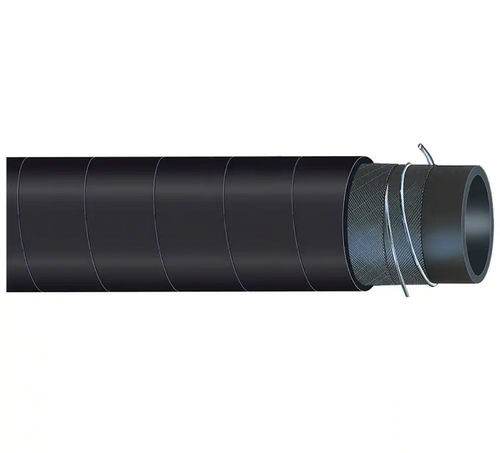

Acid hose Poliax D SM EN 12115
rubbersuctionconstruction

acid hose
acid hose
Add to favorites
Compare this product


Characteristics

Use
for acids
Material
rubber
Applications
suction, construction, transfer, medium-pressure
Other characteristics
anti-static, vacuum, ATEX, flameproof, spiral wire
Inner diameter

Max.: 100 mm
(3.937 in)

Min.: 19 mm
(0.748 in)

Outer diameter

Max.: 116 mm
(4.567 in)

Min.: 31 mm
(1.22 in)

Pressure

Max.: 232 psi

Min.: 180 psi

Temperature

Max.: 130 °C
(266 °F)

Min.: -35 °C
(-31 °F)

Delivered length

40 m
(131'02" )

Description

Poliax D SM EN 12115 is a medium pressure rubber hose designed for suction and delivery of aggressive acids and chemicals combining comfort of use and protection. Poliax D SM EN 12115 is a hose suitable for suction and delivery of aggressive chemicals and acids without risk of leaching or contamination of the fluid conveyed. The robust construction either protects the media from external agents and the operators, environment from the hazardous fluids conveyed thanks to materials resistant to mechanical and environmental stress. The main mission of this hose is to serve and to protect. Parker has designed Poliax D with the best materials and technology, but we recommend you always to follow our safety guide and to refer to our Chemical guide to determine compatibility with specific fluids. Because we do care about you and your business. Markets • Processing • Transportation • Industrial Features/Benefits • Antistatic properties make it admissible in ATEX areas • Nitrosamine free compounds to protect the natural environment and the quality of life • Flame resistant cover suitable for hazardous fluid transfer • Design Factor 4:1 enhances safety for operators and equipment Applications • In-Plant • Storage • Tank transfer • Acid, chemicals, solvents • Vacuum
