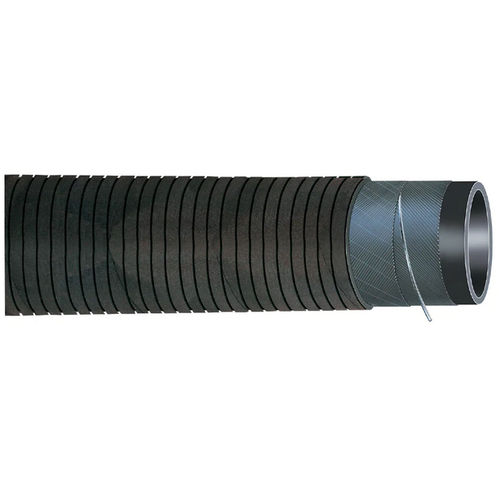

Air hose E-Z Form™ GS
for waterfor chemical productspolymer

air hose
air hose
Add to favorites
Compare this product


Characteristics

Use
for water, for chemical products, for air
Material
EPDM, polymer
Applications
suction, transport, for automotive applications, cooling
Other characteristics
vacuum, spiral wire
Inner diameter

Min.: 12.7 mm (0.5 in)

Max.: 102 mm (4.016 in)

Outer diameter

Min.: 23.8 mm (0.937 in)

Max.: 116 mm (4.567 in)

Pressure

75 psi

Temperature

Min.: -45 °C (-49 °F)

Max.: 125 °C (257 °F)

Delivered length

10 m (32'09")

Description

E-Z Form GS is a cooling hose designed to handle extreme bends while allowing full-flow, kink-free performance, E-Z Form effectively €replaces preformed hoses and hose/bent metal tube assemblies in many applications — eliminating special design, tooling, fabrication costs and associated long lead times. It also eliminates the need to order prototypes and excessive minimum production quantities. It minimizes the need for costly made-to-order pre-formed hose and metal tubing, reduces installation time, provides rapid delivery from stock and does not require dedicated inventory. Do not drag on sharp edges or highly abrasive surfaces. Markets • Transportation • Industrial • Mobile • Municipalities Features/Benefits • Extreme fl€exibility allows a more direct path in routing minimizing the need for adapters and/or special fittings • One continuous length of hose minimizes leak points and subsequent warranty issues • Design Factor 4:1 enhances safety of operators and equipment • Packaged in fix 10 mt lenght can be cut to length as needed • It is a catalog product available from stock in multiple incremental sizes to catch all opportunities quickly Applications • Air, coolant, mild chemicals, water • Coolant systems, drain lines, vacuum service • SAE J20R2-D1 performance in engine coolant service • On-road & Off-road vehicles
