Hydraulic hose 421SN series
synthetic rubberNBRPVC

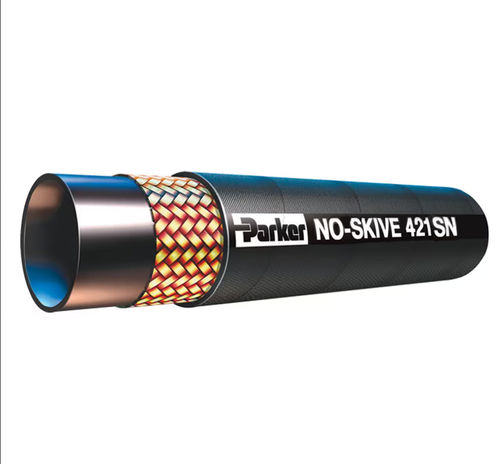

Hydraulic hose - 421SN series - Parker Hose Products Division - Europe - synthetic rubber / NBR / PVC
Hydraulic hose - 421SN series - Parker Hose Products Division - Europe - synthetic rubber / NBR / PVC
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Material
synthetic rubber, NBR, PVC
Applications
transport, construction, for automotive applications, agricultural, building, for mining applications, medium-pressure, for the paper industry, for railway application, for machine tools, for aerospace applications
Other characteristics
steel-braided, fire-retardant
Inner diameter

Max.: 50.8 mm
(2 in)

Min.: 6.4 mm
(0.252 in)

Outer diameter

Max.: 64.7 mm
(2.547 in)

Min.: 13.4 mm
(0.528 in)

Pressure

Max.: 225 bar
(3,263.349 psi)

Min.: 40 bar
(580.151 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

No-Skive Medium Pressure Hose 421SN, 421TC, 421RH , 421WC. According to EN 853 1SN - ISO 1436 Type 1. Working pressure: up to 22,5 MPa and a temp. Range: -40 °C up to +125°C. Compatible with No-Skive fittings in steel and stainless steel. Parker's Medium Pressure No-Skive hoses 421SN, 421TC, 421RH and 421WC offers an extended fluid compatibility and high flexibility with an easy installation due to the thin cover construction. Markets: • - Mobile • - Industrial Features/Benefits: • - 421 RH has a fire retardant cover and is Railway approved: - European Standad EN 45545 HL2 for R22 (ingernal) and R23 (external) • - 421 WC has a galvanized Steel wire cover for métal and glass hot-spot résistance • - Nitrile inner tubes suitable for minerai and bio-degradable oils • - Using high quality compounds allows thin covers - small bend radii, less weight, long service life still assured • - High flexibility for easier installation and increased service life • - Parkrimp machines, portable or bench mount for easy assembly opération -hose assemblies meet CE directives • - Complété No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly Applications: • - Forestry • - Materials Handling • - Injection Moulding
