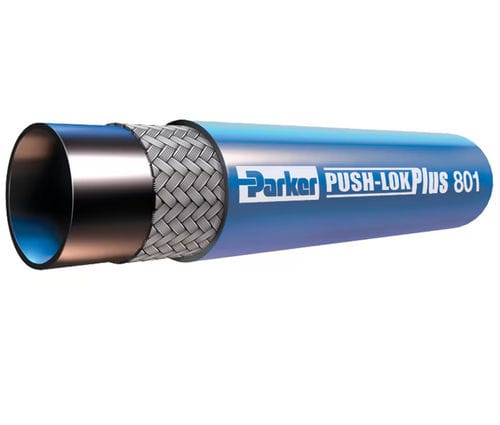

Water hose 801 series
hydraulicfor fuelfor oil

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water, hydraulic, for fuel, for oil, pneumatic, for air
Material
synthetic rubber
Applications
construction
Other characteristics
fabric-braided
Inner diameter

Min.: 6.3 mm (0.248 in)

Max.: 25 mm (0.984 in)

Outer diameter

Min.: 12.7 mm (0.5 in)

Max.: 32.6 mm (1.283 in)

Pressure

14 bar, 21 bar, 24 bar (203.053 psi)

Temperature

Min.: -40 °C (-40 °F)

Max.: 125 °C (257 °F)

Description

Application: Pneumatic, Petroleum base hydraulic fluids, lubricating oils and antifreeze solutions. Diesel fuel - approved only when coupled with HY Sériés fittings. Construction: Inner tube - : - Synthetic rubber Reinforcement - : - One fiber braid Outer Cover - : - Synthetic rubber, MSHA accepted
