Hydraulic filter DFH2060 series
fueldouble-basketin-line

hydraulic filter
hydraulic filter
Add to favorites
Compare this product


Characteristics

Designed for
hydraulic, fuel
Filtration element
double-basket
Other characteristics
in-line, high-flow, horizontal, duplex, low pressure
Operating pressure

Max.: 34 bar (493.128 psi)

Min.: 0 bar (0 psi)

Flow

2,200 l/min (581.179 us gal/min)

Description

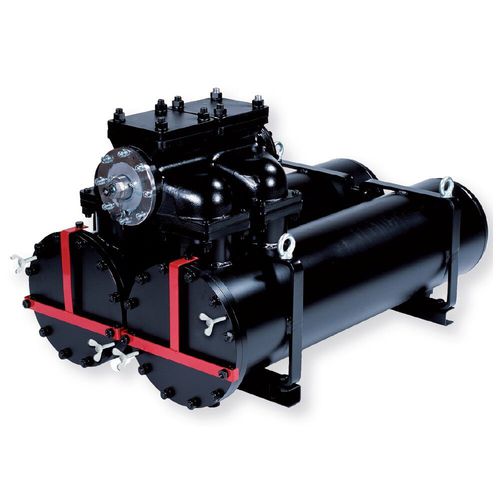

The DFH2060 is a series of low pressure, high flow duplex filters for diesel engine and industrial lubricating systems. Suitable for flows up to 2200 l/min and pressures up to 10 bar. The DFH2060 series is a low pressure, high flow, high performance, minimum height duplex filter for use in lubrication system applications. It has a Slim welded housing construction with cast iron change over valve section. The DFH2060 filter is for horizontal mounting, making assembly easier in cranked positions. It offers several element media options for high dirt holding capacities and low pressure drops. One reservoir can be closed for service. The DFH2060 has 160 mm square flange connections that come with mounted blind flanges. Maximum flow rate up to 2200 l/min. Maximum pressue 10 bar. Applications: • Heavy duty diesel engine lubricating systems • High flow industrial lubricating systems
