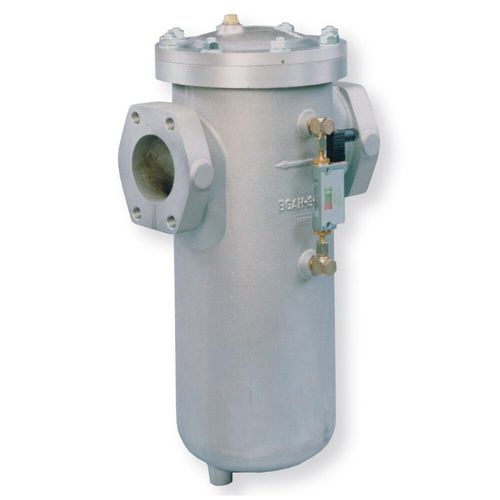

Hydraulic filter BGAH series
oilcartridgewire mesh

hydraulic filter
hydraulic filter
Add to favorites
Compare this product


Designed for
hydraulic, oil
Filtration element
cartridge, wire mesh
Filtration method
low-pressure, industrial
Other characteristics
in-line, off-line, bypass
Operating pressure

Max.: 34 bar (493.128 psi)

Min.: 0 bar (0 psi)


Max.: 500 l/min (132.086 us gal/min)

Min.: 250 l/min (66.043 us gal/min)


The BGAH series offers an light weight in-line solution for a wide range of applications. It features pre-filtration by magnet column, making it ideal for use in hydraulic and lubrication oil systems that can contain high levels of iron and other ferrous contaminants. Available with a full-flow bypass with low hysteresis. The BGAH makes use of the In-to-Out filter principle, which means there is no possibility for contaminated oil to leak back into the system. The In- and outlet configuration allows integration of the BGAH in a straight pipeline. The BGAH can be specified with Microglass, Ecoglass (Leif), Cellulose and Wire mesh filter media. Available with optional Visual or Visual/Electronic differential pressure indicators. Max. nominal flow 500 l/min. Max. working pressure 25 bar. Applications: • Industrial gearboxes • Wind turbines • Stone crushers • Bypass and off-line filtration • Designed for hydraulic and lube applications
