Hydraulic filter PT series
cartridgepressurealuminium

hydraulic filter
hydraulic filter
Add to favorites
Compare this product


Characteristics

Designed for
hydraulic
Filtration element
cartridge
Filtration method
pressure
Material
aluminium, metal
Other characteristics
compact, disposable, top-mounted, bypass, return-line
Filtration size

Max.: 20 µm

Min.: 2 µm

Operating pressure

10 bar (145.038 psi)

Flow

400 l/min (105.669 us gal/min)

Description

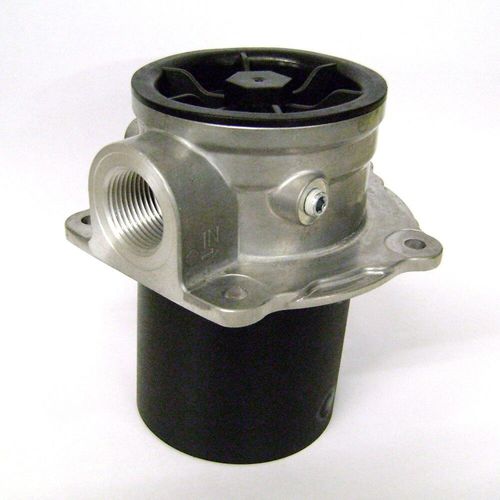

The PT filter features an aluminium filter head and screw-in style filter elements. The element has an In to Out flow design that avoids re-contamination of the hydraulic system. Having a Parker design that protects the quality of filtration, the PT offers great value for money. The PT Series filter is available in various sizes covering a flow rate up to 400 l/min. Using Microglass media in 2, 5, 10 and 20 microns it provides premium particle removal efficiency. The disposable filter cartridge is a single-piece construction, which incorporates the nylon cover and integral 1.7 bar bypass valve. The flow path is inside-out and the element requires no special tools for service. With its unique design the filter element simply threads into a ported tank ring, which can be bolted to a metal reservoir. This concept assures minimal installation costs with the least space requirements for return line applications. This also offers the opportunity to use just the filter element as screw-in style element for co-polymer reservoirs. Product Features: • Compact tank top mounted return line filter. • Filter element can be used for direct screw-in mounting with co-polymer reservoirs. • Parker quality filter element. • In to Out flow avoids re-contamination of the system. • Flow capability up to 400 l/min at 10 bar working pressure.
