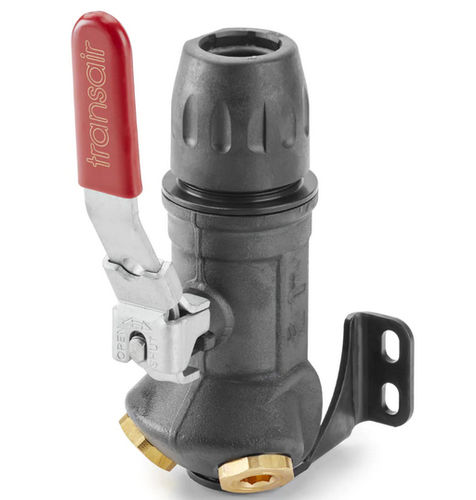

Wall-mounted support 6635 27 21

Transair Wall Brackets make connecting machinery or tools to the supply line quick and easy. These brackets are rated for use in compressed air as well as industrial/inert gas applications. To match the needs/constraints of the environment, Parker offers a one (1), two (2), or three (3) port options. For extra control and safety over the media flow, we offer select wall brackets with an integrated bail valve. Ail wall brackets are equipped with a drain outlet for easy air or moisture drainage. The "full bore" design of Transair wall brackets paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. Ail wall brackets are 100% recyclable, silicone free, and made from materials with no propagation of flame. Ail wall brackets conform tothe UL94HB standard. Parker Hannifin warrants ail Transair components to be free of defects in material and workmanship for 10 years from the date of installation. Markets: • - Automotive Assembly • - Food & Beverage • - Packaging • - Industrial Plants • - Aerospace Features / Benefits: • - Quick connection technology • - Modular and reusable • - Corrosion résistant • - Full-bore design • - Optimum flow rate • - 100% recyclable • - Faster installation • - Lower installation costs_
