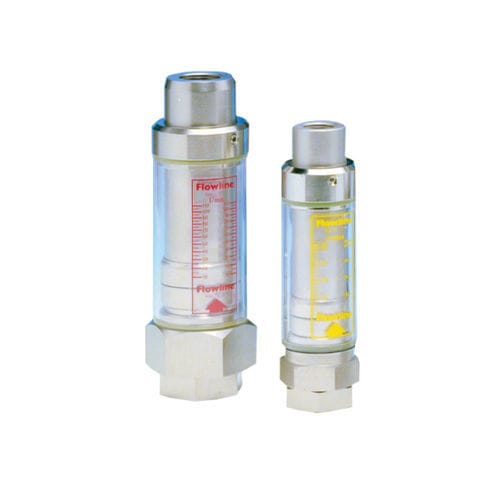

Variable-area flow meter FM seriesvolumefor waterfor oil
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for water, for oil
- Installation
- in-line
- Applications
- for hydraulic applications
- Other characteristics
- high-pressure, custom, with indicator, self-powered
- Volumetric flow rate
Min.: 0.06 m³/h
(2.1189 ft³/h)Max.: 21.6 m³/h
(762.7968 ft³/h)- Process pressure
Min.: 0 bar
(0 psi)Max.: 350 bar
(5,076.32 psi)
Description
Overview
The Flowline Series is a range of inline mechanical flowmeters that provide a visual indication of fluid flow in hydraulic systems. They cover flow rates from 1–360 L/min and have a maximum allowable working pressure of 350 bar (5076 psi). The mechanical indicator is calibrated for oil and water.
Key features
Applications
Technical specifications
The Flowline Series is a range of inline mechanical flowmeters that provide a visual indication of fluid flow in hydraulic systems. They cover flow rates from 1–360 L/min and have a maximum allowable working pressure of 350 bar (5076 psi). The mechanical indicator is calibrated for oil and water.
Key features
- Inline mechanical construction for direct flow measurement
- Visual flow indication with calibrated scale
- Calibrated for oil and water
- Wide flow range: 1–360 L/min
- Maximum working pressure: 350 bar (5076 psi)
- Operates without electrical power
Applications
- Hydraulic systems requiring visual flow verification
Technical specifications
- Flow range: 1–360 L/min
- Maximum allowable working pressure: 350 bar (5076 psi)
- Type: Inline mechanical flowmeter
- Media: Oil and water (calibrated)
