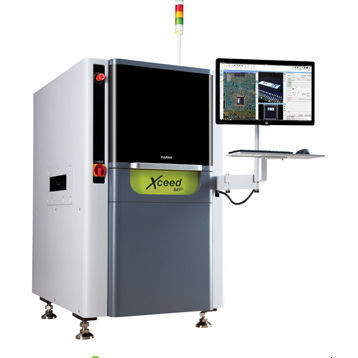

3D inspection machine Xceed MPcoating thicknessfor small partsPCB
Add to favorites
Compare this product
Characteristics
- Technology
- 3D
- Applications
- PCB, for small parts, coating thickness
- Sector
- for the electronics industry
- Other characteristics
- automatic, measurement, high-resolution, in-line, non-contact
Description
Product overview
Key capabilities
Inspection items and measurable attributes
Process integration
Additional notes
Caractéristiques / spécifications techniques
- Multi-Purpose 3D AOI platform designed for SMT / PCB inspection.
- Combines Component, Solder, and Conformal Coating inspection in a single machine.
- Employs a Laser Line Scan method for 3D measurement and inspection.
Key capabilities
- Multi-purpose 3D AOI enabling inspection of components, solder, solder paste, epoxy, conformal coating, and related defects.
- Component, Solder, and Conformal Coating Inspection with One Machine — unified inspection workflow without separate cycles for each inspection type.
- Laser Line Scan Method for high-precision 3D data capture.
- Foreign Material & Contamination detection; PCB warpage inspection performed without additional cycle time.
- Application software configurable according to user needs: SPI (Solder Paste Inspection) / AOI (Automated Optical Inspection) / CCI (Conformal Coating Inspection).
- Inspection items include SMD, solder paste, epoxy, conformal coating, etc.
Inspection items and measurable attributes
- Height
- Area
- Volume
- Position misalignment
- Bridge (solder bridging)
- Shape abnormalities
- PCB warpage
- PCB shrinkage / expansion (automatic compensation)
Process integration
- Supports feedback & feedforward linkage to downstream/upstream processes for process optimization.
Additional notes
- Designed to provide multiple inspection functions (SPI/AOI/CCI) via selectable application software types, enabling tailored inspection workflows to customer requirements.
Caractéristiques / spécifications techniques
- Product name: Xceed MP
- Product type: Multi-Purpose 3D AOI
- 3D capture method: Laser Line Scan
- Supported inspection modes: SPI / AOI / CCI (software selectable)
- Primary inspection targets: SMD components, solder paste, epoxy, conformal coating
- Measured parameters: height, area, volume, positional offset, bridging, shape defects
- PCB conditions handled: warpage inspection, automatic compensation for PCB shrinkage/expansion
- Process features: foreign material/contamination detection; inspection without additional cycle time; feedback & feedforward integration for process optimization
- Typical use case: unified inspection of components, solder, and conformal coating on SMT production lines
