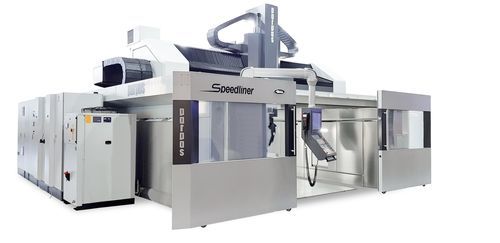

5-axis CNC machining center SPEEDLINER universalfor steelfor cast iron
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Machined material
- for steel, for cast iron, for stainless steel, for light alloys, for titanium alloys, for aluminum, for aluminum alloys, for composites
- Structure
- gantry
- Spindle mount
- ISO 5, HSK-63-A, HSK-100-A, ISO 40
- Applications
- for the automobile industry, heavy-duty, for the aeronautical industry, for the aerospace industry, for large workpieces, for the mold industry, for titanium, for aeronautics, for aluminum profiles, for the aluminum industry
- Other characteristics
- high-speed, high-performance, high-productivity, high-precision, high-rigidity, high-speed, with linear motor
- X travel
Min.: 2,500 mm
(98.43 in)Max.: 30,000 mm
(1,181.1 in)- Y travel
Min.: 1,800 mm
(70.87 in)Max.: 3,600 mm
(141.73 in)- Z travel
Min.: 1,200 mm
(47.24 in)Max.: 1,750 mm
(68.9 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 36,000 rpm
(226,195 rad.min-1)- Power
Min.: 37 W
(0.05 hp)Max.: 78 W
(0.11 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)
Description
Full linear motors 5-axis Gantry machining centre for high-speed and high-accuracy machining
SPEEDLINER is the 5-axis Gantry machining centre designed to ensure maximum accuracy, dynamic and reliability also on long cycles and unmanned operations. Equipped with linear motors ensure smooth movements, high accelerations and no mechanical wear, key features in high-speed machining. SPEEDLINER is the perfect solution for complex parts in sectors like aerospace, automotive, mould & die and general engineering where surface quality, dimensional stability and short cycle times are competitive advantages.
SPEEDLINER is the 5-axis Gantry machining centre designed to ensure maximum accuracy, dynamic and reliability also on long cycles and unmanned operations. Equipped with linear motors ensure smooth movements, high accelerations and no mechanical wear, key features in high-speed machining. SPEEDLINER is the perfect solution for complex parts in sectors like aerospace, automotive, mould & die and general engineering where surface quality, dimensional stability and short cycle times are competitive advantages.
VIDEO
