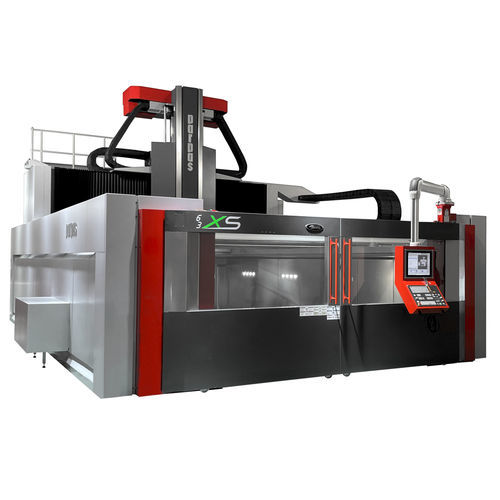

5-axis CNC machining center / vertical / gantry / for large workpieces
max. 30 000 x 4 500 x 2 000 mm | XS series

{{requestButtons}}

Characteristics

  • Number of axes:

    5-axis

  • Spindle orientation:

    vertical

  • Structure:

    gantry

  • Other characteristics:

    for large workpieces, for molds, for heavy loads, high-speed

Description

The XS is the line of medium/large size gantry machines. It is dedicated to 3 – 5 axis high speed machining as well as heavy duty machining on hard materials (steel, inconel, titanium, etc). The possibility to have automatic head changing system or as alternative, the automatic spindle cartridge change, allows the machines to be much flexible and suitable for complex machining both in moulds/dies industry and in aerospace industry.

Table surface mm from 3.000 x 2.000 up to 30.000 x 3.000
Max load admitted Kg 6.000 per square meter
Longitudinal travel (step 500 mm) mm from 3.000 to 30.000
Cross travel (Y axis) mm 2.500 - 3.000 - 3.500
Vertical travel (Z axis) mm 1.250 - 1.500 - 1.650
