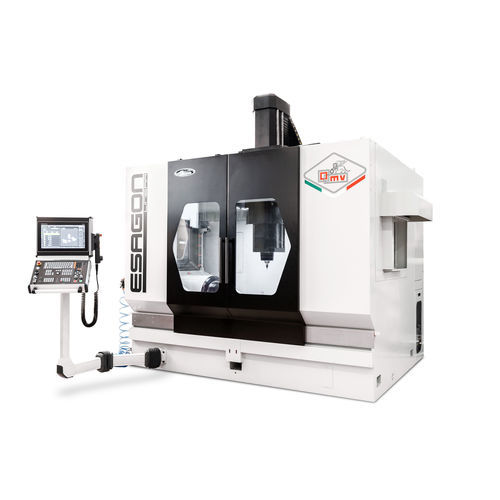

3/5-axis machining center ESAGONverticalfor steelfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/5-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for aluminum, for aluminum alloys, for titanium alloys, for light alloys, for stainless steel, for cast iron, for composites
- Structure
- gantry, with rotary tilting table
- Spindle mount
- HSK-63-A
- Associated functions
- milling
- Applications
- for titanium, for the automobile industry, for the aerospace industry, for molds, for generator rotors, for aeronautics, for the mold industry, for gas turbines, for the aluminum industry, for small parts production, for the aeronautical industry, for turbine blades, for blisk
- Other characteristics
- high-performance, compact, high-precision, high-speed, direct-drive, with linear motor, with pallet changer
- X travel
1,200 mm
(47.24 in)- Y travel
750 mm
(29.53 in)- Z travel
700 mm
(27.56 in)- Rotational speed
Max.: 27,000 rpm
(169,646 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 37 kW
(50.31 hp)Min.: 0 kW
(0 hp)- Work feed X-axis
Max.: 120,000 mm/min
(78.74 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 120,000 mm/min
(78.74 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 120,000 mm/min
(78.74 in/s)
Description
3 or 5-axis Gantry machining centre with linear motors for high-accuracy and high-speed machining
ESAGON is s 3 or 5-axis Gantry machining centre designed to ensure high-accuracy, high-dynamic and high finishing quality during high-speed machining. Equipped with linear motors on all axes for fast and smooth movements with no wear.
It is the perfect solution for applications that needs tridimensional accuracy, productivity and flexibility in sectors like aerospace, mould & dies and general engineering.
The Gantry structure and the ergonomic working area makes ESAGON a high performing machine on both highly automated production lines and high-quality oriented manufacturing.
ESAGON is s 3 or 5-axis Gantry machining centre designed to ensure high-accuracy, high-dynamic and high finishing quality during high-speed machining. Equipped with linear motors on all axes for fast and smooth movements with no wear.
It is the perfect solution for applications that needs tridimensional accuracy, productivity and flexibility in sectors like aerospace, mould & dies and general engineering.
The Gantry structure and the ergonomic working area makes ESAGON a high performing machine on both highly automated production lines and high-quality oriented manufacturing.
