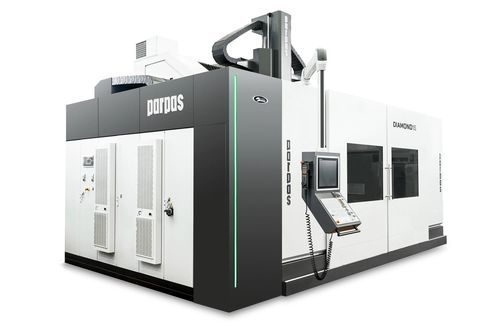

5-axis CNC machining center DIAMOND 15verticalgantryHSK-100-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- HSK-100-A, HSK-63-A
- Applications
- for the automobile industry, for the aeronautical industry
- Other characteristics
- high-speed, high-performance, high-precision, with linear motor
- X travel
1,500 mm
(59 in)- Y travel
Max.: 1,400 mm
(55 in)Min.: 1,200 mm
(47 in)- Z travel
2,600 mm
(102 in)- Rotational speed
Max.: 36,000 rpm
(226,195 rad.min-1)Min.: 15,000 rpm
(94,248 rad.min-1)- Power
Max.: 78 kW
(106.05 hp)Min.: 37 kW
(50.31 hp)- Work feed X-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)
Description
The DIAMOND 15 is a high precision and reliable 5-axis gantry machining center ideal for high speed machining.
The DIAMOND 15 is a Gantry 5 axis high precision and reliability machining center, ideal for high speed machining.
It is characterized by a monobloc structure, with a traverse with gantry configuration and piece always fixed, completely with linear motors for both linear and rotary axes with torque motors.
Extremely effective in high-speed roughing operations and extremely accurate and reliable in semi-finishing and finishing operations. All this allows the machine to be, in the same way, highly performing even unmanned.
Product can be customized according to customer requirements (Heads, CNC, tool magazine, etc.) but with standard strokes.
