Bending busbar fabrication machine HBC-BE160

fixedelectro-hydraulic

Overview

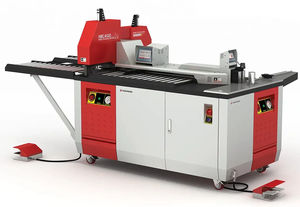

The HBC-BE160 is a dedicated busbar bending machine for precision forming of copper and aluminum busbars up to 160 × 15 mm. Available in manual (EH) and automatic (ES) versions, the machine is engineered for clean, repeatable bends with a standard mobile mold radius of 14 mm and fast tool changes for high-productivity batch work.

Key features

• Dedicated busbar forming station (no cutting or punching)
• Two versions: manual (EH) with a simple length stopper; automatic (ES) with programmable length stopper and repeatable angle positions
• High-resolution rotary encoder for accurate angular feedback
• Quick-change tooling to minimise setup time
• Hydraulic powerpack with foot pedal control for automatic cycles
• Five optional molds available; custom molds on request

Process & capacity
Max capacity: 160 × 15 mm
Standard forming radius (mobile mold): 14 mm
Materials: copper & aluminum
Positioning: programmable length stopper (ES) / manual stopper (EH)

Power & hydraulics
Rated voltage: 380 V AC, 3-phase
Motor power: 1 × 2.2 kW
Operating pressure: 200 bar
Hydraulic oil volume: 30 L

Machine & operation
Machine weight: 610 kg
Operators: 1 (single-operator workflow)
Industry 4.0 ready: Yes
Mounting: floor base
Dimensions (L×W×H): 130 × 110 × 100 cm

Bend types covered

• Twist bending
• Z bend (step bend)
• V bend
• Edge (flange) bend
• Standard angle bend

Technical specifications

• Model: HBC-BE160 (EH = manual, ES = automatic)
• Max capacity: 160 × 15 mm
• Standard forming radius: 14 mm
• Motor power: 1 × 2.2 kW
• Rated voltage: 380 V AC, 3~ / 50 Hz
• Operating pressure: 200 bar
• Hydraulic oil: 30 L (H68 recommended)
• Machine weight: 610 kg
• Footprint / Dimensions: 130 × 110 × 100 cm (L×W×H)
• Operators required: 1
• Functions: forming only (no cutting/punching)
• Molds: 5 optional molds; custom molds on request
• Industry 4.0 readiness: Yes
