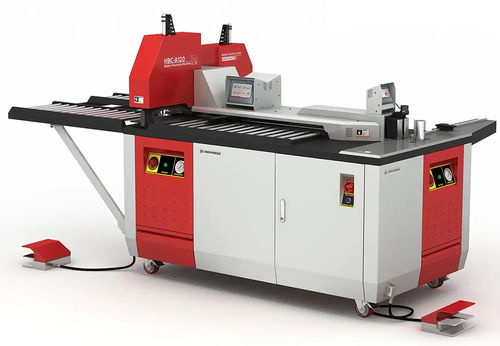

Bending busbar fabrication machine HBC-BE200-EHfixedelectro-hydraulic
Add to favorites
Compare this product
Characteristics
- Operations
- bending
- Configuration
- fixed
- Other characteristics
- electro-hydraulic
Description
Description
The HBC-BE200-EH/ES is a dedicated busbar bending machine for forming copper and aluminum busbar up to 200 × 20 mm. It is a compact, single-station unit designed for one operator and for repeatable, heavy-gauge forming without integrated cutting or punching functions.
Power & hydraulics
The machine is driven by a 4.2 kW power pack and a 200 bar hydraulic system. Rated electrical supply is 380 V AC, three-phase, 50 Hz. The hydraulic circuit holds approximately 30 L of oil. The standard mobile mold provides a 14 mm forming radius to achieve clean bends on thick bar stock.
Machine layout & operation
The HBC-BE200-EH/ES is floor-mounted on a base with a clear working area to handle long and heavy busbar lengths. The layout supports single-operator feeding, staging, rotating and repositioning for successive bends while keeping the workflow compact for panel-building and switchgear production lines.
Forming capability
Variants
The model is available in manual (EH) and automatic (ES) variants. EH uses a manual length stopper for hands-on positioning; ES adds a programmable length stopper for stored/repeatable positions and hands-off operation.
Notes
Functions: forming only — there is no cutting or punching station on the standard configuration. The machine concentrates hydraulic power on forming to minimise surface cracking and ensure repeatable, clean bends.
Technical specifications
The HBC-BE200-EH/ES is a dedicated busbar bending machine for forming copper and aluminum busbar up to 200 × 20 mm. It is a compact, single-station unit designed for one operator and for repeatable, heavy-gauge forming without integrated cutting or punching functions.
Power & hydraulics
The machine is driven by a 4.2 kW power pack and a 200 bar hydraulic system. Rated electrical supply is 380 V AC, three-phase, 50 Hz. The hydraulic circuit holds approximately 30 L of oil. The standard mobile mold provides a 14 mm forming radius to achieve clean bends on thick bar stock.
Machine layout & operation
The HBC-BE200-EH/ES is floor-mounted on a base with a clear working area to handle long and heavy busbar lengths. The layout supports single-operator feeding, staging, rotating and repositioning for successive bends while keeping the workflow compact for panel-building and switchgear production lines.
Forming capability
- Twist bend
- Z bend (step bend)
- V bend
- Edge bend
- Normal bend
Variants
The model is available in manual (EH) and automatic (ES) variants. EH uses a manual length stopper for hands-on positioning; ES adds a programmable length stopper for stored/repeatable positions and hands-off operation.
Notes
Functions: forming only — there is no cutting or punching station on the standard configuration. The machine concentrates hydraulic power on forming to minimise surface cracking and ensure repeatable, clean bends.
Technical specifications
- Model: HBC-BE200-EH / HBC-BE200-ES
- Max capacity: 200 × 20 mm
- Material: Copper and aluminum
- Functions: Bending only (no cutting or punching)
- Standard mobile mold forming radius: 14 mm
- Number of operators: 1
- Rated voltage: 380 V AC (three-phase)
- Total power: 4.2 kW
- Frequency: 50 Hz
- Operating pressure: 200 bar
- Hydraulic oil capacity: 30 L
- Positioning stopper: Manual (EH) / Programmable automatic (ES)
- Mounting type: Base, floor-mounted
- Machine weight: To be confirmed after manufacturing
- Dimensions (L×W×H): To be confirmed after manufacturing
- Max die / hole diameter: Not applicable (no punching station)
