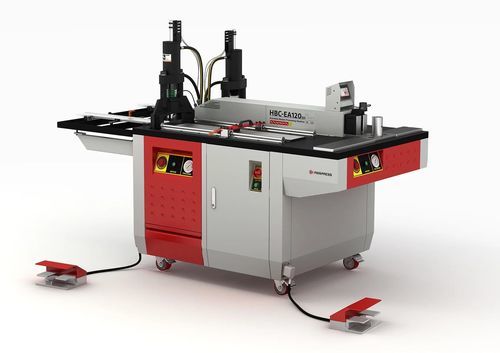

Punching busbar fabrication machine HBC-EA120-EH

cuttingbendingmobile

Product overview
The HBC-EA120EH is a 3-in-1 busbar processing machine combining cutting, punching and bending functions in a single mobile unit. It processes copper and aluminium busbars up to 120 × 12 mm and features three independent hydraulic power packs so cutting, punching and bending can operate simultaneously for up to three operators. The machine keeps changeable punching dies and multiple bending molds while targeting a cost-efficient footprint for workshops and production lines.

Key features

• Three separate hydraulic power packs: simultaneous cutting, punching and bending
• Processes copper and aluminium busbars up to 120 × 12 mm
• Puncher accepts changeable round dies M6–M18; oval and rectangular dies optional
• Bender with high-accuracy encoder controller; optional step, edge and twist bending molds
• Laser center finder for punching; standard max die/hole diameter Ø20 mm
• Manual length stopper (EH version) and rollers on both sides for easy handling

Bending station

• Electronic bending controller with spring-back compensation
• Digital angle indicator for consistent bend angles
• Rotating plates to protect busbar surface
• Optional molds: step (for tight bends), edge bending, twist bending and end bending; standard mobile mold radius 12 mm

Punching station

• Laser pointer for hole center alignment
• Quick-change dies: round M6–M18; oval and rectangular dies optional
• Movable stripper plate and double-acting hydraulic system to prevent die jamming
• Adjustable guides and side rollers to facilitate feed; manual length stopper with fine adjustment (EH)

Cutting station

• Precision cutting with clean edge finish
• Centered guide and centering clamp for repeatable results
• Rollers on both sides to ease bar handling
• Manual length stopper with high-precision adjustment

Process & capacity

• Functions: Cutting + Punching + Bending (simultaneous)
• Max capacity: 120 × 12 mm
• Max die / hole diameter (puncher): Ø20 mm
• Material: Copper & Aluminium
• Positioning stopper: Manual (EH)

Power & hydraulics

• Rated voltage: 380 V AC, 3/50 Hz
• Total electrical power: 3 × 1.5 kW
• Operating pressure: 200 bar
• Hydraulic oil capacity: 70 L (H68 recommended)

Machine & operation

• Machine weight: approx. 700 kg
• Operators required: up to 3 (one per station)
• Mounting: mobile with wheels
• Dimensions (L×W×H): 238 × 110 × 100 cm (main table)

Technical specifications

• Model: HBC-EA120EH
• Functions: Cutting, Punching, Bending (simultaneous)
• Max capacity: 120 × 12 mm
• Punching dies: Round M6–M18 (oval/rectangular optional)
• Bending molds: standard mobile mold (12 mm radius); optional step, edge, twist molds
• Controller: Electronic bending controller with high-accuracy encoder
• Voltage / Frequency: 380 V AC / 50 Hz
• Total power: 3 × 1.5 kW
• Operating pressure: 200 bar
• Hydraulic oil: H68 — 70 L
• Machine weight: ~700 kg
• Mounting: Wheel (mobile)
• Dimensions main table: 238 × 110 × 100 cm
