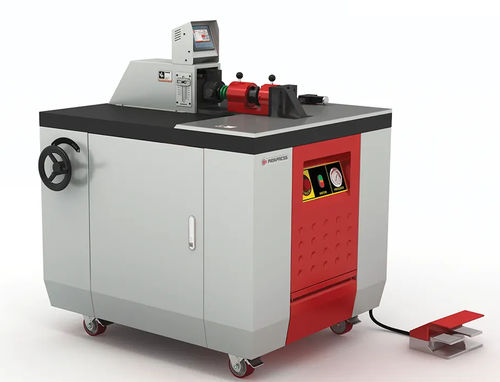

Cutting busbar fabrication machine HBC-PC120

bendingpunchingmobile

Overview
The HBC-PC120 is a compact, workshop-grade busbar machine that performs cutting, punching and bending operations on copper and aluminium busbars. Designed for small workshops and mobile job sites, the unit uses a single hydraulic power pack and a set of quick‑change heads to carry out each operation sequentially. The machine is suitable for busbars up to 120 × 12 mm and is single‑phase 220 V compatible.

Main capabilities

• Cutting, punching and bending of copper and aluminium busbars (sequential operations with head change).
• Cable functions available via dedicated heads: crimping and cable cutting (optional).
• Punching with standard circular dies M6–M18; rectangular and oval dies available as options.
• Five quick‑change heads for rapid switching between operations (cutting, punching, bending, cable crimping, cable cutting).
• Designed for repeatable, accurate results with controlled bend angles via encoder and electronic bender controller.

Notable features and controls

• PLC control (Siemens components referenced) and HMI for bender management.
• High‑accuracy encoder for consistent angle control.
• Laser centre finder for precise punching position.
• Hydraulic station with combined high/low pressure pump and quality valve components.
• Fast tool change design; hand‑wheel for busbar axis up/down; foot pedal for hydraulic arm advance/return and automatic cycles.

Specifications (summary)

• Model: HBC-PC120 (table reference HBC-PC120-EH).
• Maximum capacity (busbar): 120 × 12 mm; max length up to 4000 mm.
• Total motor power: 1.7 kW (other documents reference 1.5 kW).
• Max die / punching diameter: ≤ Ø20 mm; punching range 4.5–20 mm.
• Bending / cutting / punching force: 160 kN (listed).
• Width range: 15–120 mm; thickness range: 3–12 mm.
• Machine weight: ~600 kg; main footprint ~1200 × 1000 × 1365 mm (machine table dimensions also cited as 100 × 120 × 101 cm).

Power & hydraulics (summary)

• Voltage: 220 V AC, single‑phase; Frequency: 50 Hz.
• Total motor power: 1.7 kW (see note above).
• Hydraulic oil: ISO VG 68 (H68), oil capacity ~30 L.
• Hydraulic pump/valve: combined high/low pressure pump with quality valves; listed component brands in spec sheets.
• Max hydraulic pressure: documented as 200 bar in the specification table; other references indicate 150 bar — to be confirmed.

Electronics & control (summary)

• PLC: Siemens components referenced for PLC/HMI.
• HMI for bender control (display sizes referenced in specs).
• Sensors: Autonics listed in component table; AC contactor: Schneider listed.
• Industry 4.0 ready: optional connectivity/feedback features noted.

Operation & mechanical

• Single hydraulic power pack — only one station active at a time (tool head change required to switch functions).
• Hand‑wheel for vertical adjustment of busbar axis to seat heads; fast head change reduces downtime.
• Foot pedal controls hydraulic arm movement and automatic cycle start.
• Stroke data (summary): cutter/puncher/bender strokes and typical speeds referenced in spec tables (e.g. cutter strike stroke 88 mm; puncher strike stroke 38 mm; bender strike stroke 80 mm; typical stroke speeds ~0.39 m/min).
• Mounting type: wheels for portability (machine weight ~600 kg).

Operations, heads and tooling

• Cutting head — for copper and aluminium busbars up to 120 × 12 mm; dedicated cutting molds.
• Punching head — circular dies M6–M18 standard; oval and rectangular dies optional; laser centre finder for precise positioning.
• Bending head — electronic controller with encoder for repeatable angles.
• Cable crimping head — crimping capacity referenced as both 300 mm² and 240 mm² in different documents (final capacity to be confirmed).
• Cable cutting head — cutting up to 240 mm².

Applications & recommended use

• Small electrical workshops, panel builders and service teams requiring a compact 3‑in‑1 busbar workstation.
• Suitable for mobile job sites and manufacturers with limited floor space.
• Ideal where sequential operations (cut/punch/bend) are acceptable and fast head change is used to switch tasks.
