Cutting busbar fabrication machine HBC-EB120-EH

punchingbendingmobile

Overview

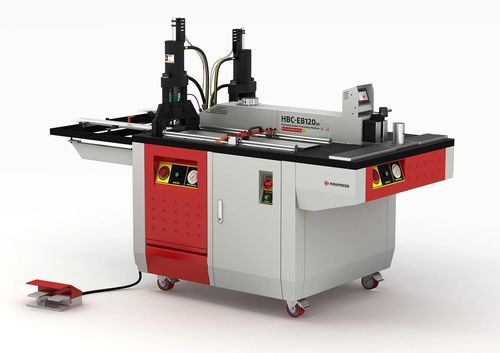

The HBC-EB120-EH is a 3-in-1 busbar processing machine (cutting, punching, bending) driven by a single power unit that provides sequential operation while retaining the tooling and controls of larger multi-motor models. It processes copper and aluminum busbars up to 120 × 12 mm. Punching accepts changeable circular dies M6–M18; oval and rectangular dies are optional. The bending unit supports optional step, edge and twist molds and a 12 mm bending radius. The bender features an electronic controller with high-accuracy encoder, spring-back compensation and a digital angle indicator.

Key features

• 3‑in‑1 stations: Cutting, Punching, Bending (station selector for sequential operation)
• Bender station: bends busbars up to 120 × 12 mm; electronic controller with encoder and spring-back compensation; digital angle readout
• Puncher station: changeable dies M6–M18; laser center finder; optional oval and rectangle dies
• Cutter station: precision cutting for copper and aluminum up to 120 × 12 mm with centralizer clamp and edge rollers
• HMI: user interface for commands and feedback
• Handy guide and manual length stop for X/Y positioning and accurate length measurement
• Auxiliary desk and side rollers to support longer busbars

Optional tooling & accessories

• Step mold (optional) for tight successive bends
• Edge bending mold (optional) for edge bends
• Twist bending mold (optional) for torsion operations
• Oval and rectangular punch dies (optional)
• Centralizer clamp for fast centering (cutter)

Operational notes
The single power unit design reduces acquisition cost with sequential operation: the operator selects the required station and the machine allocates hydraulic power to that function. Core functions such as laser centering, digital angle display and bending compensation remain available, providing a compact and flexible solution for MV/LV panel builders and electrical workshops.

Summary table
Model: HBC-EB120-EH
Functions: Cutting + Punching + Bending (3-in-1)
Max capacity (busbar section): 120 × 12 mm
Materials: Copper and Aluminum
Power / motor: 1.7 kW (single motor, sequential stations)

Technical specifications

• Model: HBC-EB120-EH
• Brand: PAYAPRESS
• Functions: Cutting, Punching, Bending (3‑in‑1)
• Max capacity (busbar section): 120 × 12 mm
• Material compatibility: Copper and Aluminum
• Punch dies: changeable circle dies M6–M18; oval and rectangle dies optional
• Puncher features: laser center finder
• Bender radius: 12 mm; supports optional step/edge/twist molds
• Controller: electronic controller with high-accuracy encoder, spring-back compensation, digital angle indicator
• Positioning / stopper: manual adjustable length stop; handy guide for X/Y
• Max die / hole diameter: ≤ 20 mm
• Total power / motor: 1.7 kW (single motor driving sequential stations)
• Rated voltage: 380 V AC
• Frequency: 50 Hz
• Operating pressure: 200 bar
• Hydraulic oil capacity: 30 L
• Machine weight: 650 kg
• Operators required: 1–2
• Mounting type: wheels
• Dimensions (L × W × H): 237 × 110 × 172 cm
• Additional tooling & accessories: centralizer clamp (cutter), optional step/edge/twist molds, optional oval/rectangle dies
