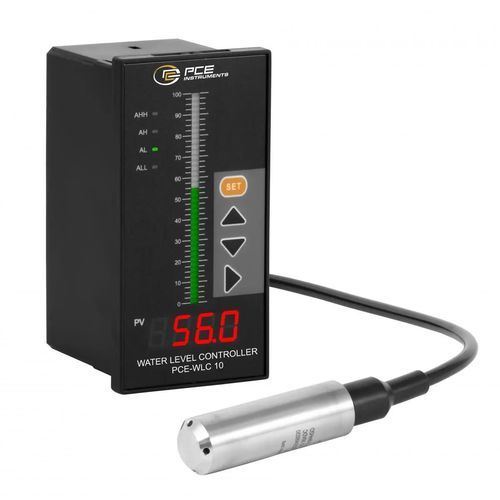

Hydrostatic level transmitter PCE-WLC 10

for liquidsfor water4-20 mA

Description
The PCE-WLC 10 submersible level transmitter provides hydrostatic liquid level measurement for industrial and environmental applications. It is suitable for wells, reservoirs, canals, rivers and coastal monitoring up to 8 m H2O, offering stable long-term performance and precise output options for system integration.

Features

• Measurement range up to 0 ... 8 mH2O
• Accuracy ±0.5 % FS
• Submersible installation for static and flowing media
• Sensor housing in titanium alloy, corrosion-resistant
• Output: 4 ... 20 mA analog
• Four alarm relays (ALL, AL, AH, AHH)
• LED display (80 x 160 mm)

Specifications
Sensor model: PCE-WLC-S
Measurement range: 0 ... 8 mH2O
Accuracy: ±0.5 % FS
Type: Hydrostatic pressure sensor
Output: 4 ... 20 mA
Sensor housing: Titanium alloy
Cable length: 10 m
Operating temperature (sensor): -10 ... +70 °C
Medium temperature: -30 ... +65 °C
Sensor supply voltage: 12 ... 30 V DC
Sensor protection: IP68
Sensor dimensions: L 90 mm x Ø 28 mm
Additional controller outputs: Relays, 4 ... 20 mA (changeover 24 V / 5 A)
Controller display type: LED
Alarm modes: 4-way relays (AHH, AH, AL, ALL) with LED indicators, adjustable thresholds on controller
Controller protection: IP65
Controller supply voltage: 24 V DC
Controller operating conditions: 0 ... 50 °C, 0 ... 85 % RH
Storage temperature: -20 ... +70 °C, 10 ... 90 % RH
Controller dimensions (L x W x H): 95 x 80 x 160 mm
Weight: 337 g

Package contents

• 1 x PCE-WLC 10 level transmitter
• 1 x Sensor with 10 m cable
• 1 x DIN-rail adapter
• 2 x User manuals

Characteristics / Specifications

• Sensor model: PCE-WLC-S
• Measurement range: 0 ... 8 mH2O
• Accuracy: ±0.5 % FS
• Output signal: 4 ... 20 mA
• Sensor housing: Titanium alloy
• Sensor cable length: 10 m
• Sensor protection class: IP68
• Controller supply: 24 V DC
• Relays: Changeover 24 V / 5 A (4-way)
• Controller dimensions: 95 x 80 x 160 mm
• Weight: 337 g
