Stroboscope for non-contact speed measurement and observation of fast-moving or rotating objects. LED light source, 2.5 in backlit LCD, phase shift and USB rechargeable internal battery.

Product description

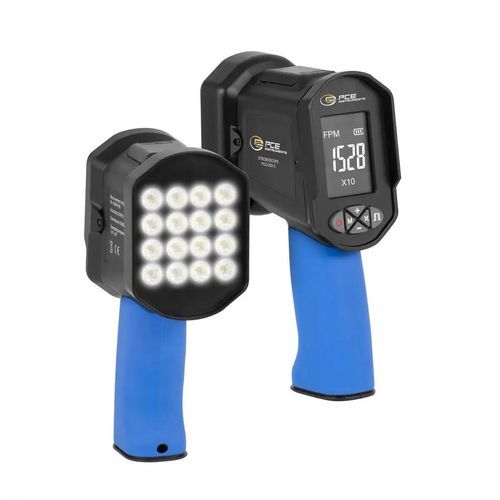

The PCE-DSX 5 is a portable stroboscope designed for precise optical RPM measurement and visual inspection of rotating or high-speed components. It uses a high-brightness 16-LED array with electronically controlled flash frequency for stable, accurate output. Measurement range covers 60 … 100,000 FPM (1 … 1,666.66 Hz) with 1 FPM / 0.01666 Hz resolution and an accuracy of ±0.001% of the set value. Fine frequency adjustment and phase shift allow synchronization with the target motion. A clear 2.5 in illuminated LCD shows readings and settings; operation is via intuitive keys. Power is supplied by an internal 7.4 V / 2000 mAh Li-ion battery, rechargeable via USB. Compact and lightweight, the unit is suitable for diagnosing and monitoring motors, fans, pumps, gearboxes, production-line quality control and vibration diagnostics in HVAC, printing, textile, medical and mechanical processing environments.

Features

• Flash rate display in FPM or Hz
• Fine adjustment steps: x1, x10, x100
• LED brightness adjustable 10 … 100%
• Switchable backlight
• Phase shift function
• Light source: 16 LEDs

Scope of supply

• 1 x Stroboscope PCE-DSX 5
• 1 x User manual
• 1 x Carabiner clip
• 1 x Hand strap
• 1 x USB-C cable

Specifications (table content)
Optical speed measurement
Measurement range: 60 ... 100000 FPM
Resolution: 1 FPM
Accuracy: ±0.001% of setting

Frequency
Measurement range: 1 ... 1666.66 Hz
Resolution: 0.01666 Hz
Accuracy: ±0.001% of setting

General technical data
Display type: LCD with backlight
Display size: 2.5 in
Light source: 16 LEDs
Illuminance: 2230 lx @ 20 cm @ 1000 Hz; 1070 lx @ 30 cm @ 1000 Hz; 440 lx @ 50 cm @ 1000 Hz
Menu language: English (US), English (GB)
Protection rating (device): IP30
Power supply: 5 V DC
Battery: 1 x 7.4 V internal Li-ion battery
Capacity: 2000 mAh
Operating conditions: -10 ... 55 °C, 0 ... 95 % RH
Storage conditions: 0 ... 50 °C, 0 ... 95 % RH
Dimensions (L x W x H): 210 x 78 x 114 mm
Weight: 355 g

Characteristics / Technical specifications (summary)

• Model: PCE-DSX 5
• Speed measurement range: 60 … 100,000 FPM (1 … 1,666.66 Hz)
• Resolution: 1 FPM / 0.01666 Hz
• Accuracy: ±0.001% of setting
• Display: 2.5" backlit LCD
• LEDs: 16 pcs
• Illuminance: up to 2230 lx (@20 cm @1000 Hz)
• Power supply: 5 V DC, internal 7.4 V / 2000 mAh Li-ion battery (USB charging)
• Protection class: IP30
• Operating temperature: -10 … 55 °C
• Dimensions: 210 x 78 x 114 mm
• Weight: 355 g
