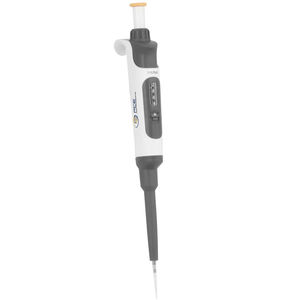

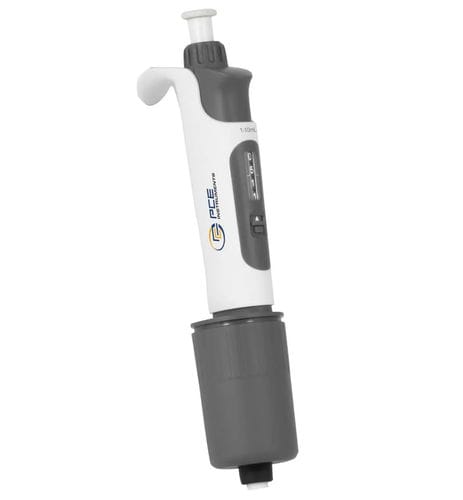

Single-channel micropipette PCE-FAP 10000

for laboratoryadjustable volumeautoclavable

Description
Single-channel laboratory pipette with manual volume adjustment. Fully autoclaveable and UV-sterilisable. 4-digit volume display. Chemical-resistant. Designed for precise and reproducible dispensing of small liquid volumes in the laboratory; particularly suitable for applications requiring exact volume delivery and hygienic working conditions. Ergonomic design for a comfortable grip and reduced pipetting fatigue. Calibrated according to ISO 8655. Individual test and calibration certificate included.

Features

• Test volumes: 1000 µL, 5000 µL, 10000 µL
• Volume range: 1000 ... 10000 µL
• Adjustment step: 10 µL
• Single-channel pipette
• High accuracy and precision
• Fully autoclaveable
• Calibration according to ISO 8655
• Includes individual test/calibration certificate
• 4-digit volume display
• Compatible with 10000-µL pipette tips

Specification
General technical data:
Volume range: 1000 ... 10000 µL
Accuracy (systematic error): - 1000 µL: 3.00 % ±0.03 mL
- 5000 µL: 0.80 % ±0.04 mL
- 10000 µL: 0.60 % ±0.06 mL
Precision (random error): - 1000 µL: 0.60 % ±0.006 mL
- 5000 µL: 0.20 % ±0.01 mL
- 10000 µL: 0.15 % ±0.015 mL
Display type: Analog
Standard(s): ISO 8655-2
Calibration: Yes
Adjustment step: 10 µL
Number of channels: 1
Operating conditions: 10 ... 40 °C, 10 ... 90 % r. H.
Storage conditions: 0 ... 50 °C, 0 ... 90 % r. H.
Dimensions (L x W x H): 210 x 25 x 60 mm
Weight: 119 g

Contents

• 1 x Laboratory pipette PCE-FAP 10000
• 1 x ISO-8655 test certificate
• 1 x Operating manual
• 1 x Pipette tip
• 2 × O-ring seal
• 4 x Filter cartridge
• 1 x Lubricant
• 1 x Tweezer

Technical characteristics

• Volume range: 1000 ... 10000 µL
• Test volumes: 1000 / 5000 / 10000 µL
• Adjustment step: 10 µL
• Accuracy and precision according to ISO 8655 (see specification)
• Fully autoclaveable and UV-sterilisable
• Single-channel model, for 10000-µL pipette tips
• Dimensions: 210 x 25 x 60 mm; Weight: 119 g
• Delivery includes test/calibration certificate
