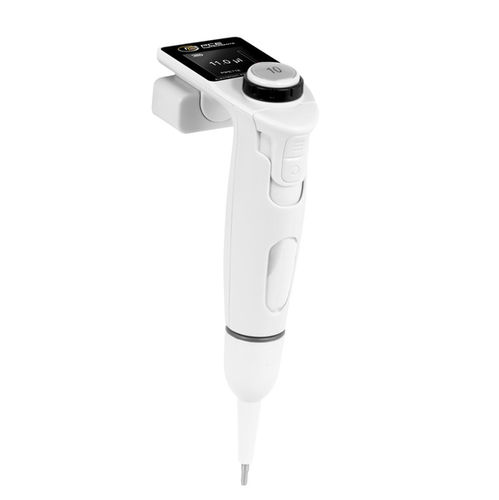

Single-channel micropipette PCE-EPI 10

air displacementpistonfor laboratory

Description
Electronic single-channel pipette / pipette / 0.1 µL increment / LCD / adjustable pipetting speed / multiple dispensing / removable battery
The electronic single-channel pipette supports precise and repeatable liquid transfers in the volume range 0.2 to 10 µL. The pipette can be set in 0.1 µL increments to facilitate accurate dosing of small samples and reagents. The motorized drive and ergonomic design reduce manual effort during repetitive pipetting tasks. Volume selection is made via the adjustment wheel and the LCD displays volume, operating mode, speed and battery status. Five speed settings for aspiration and dispensing allow adaptation to different workflows, with an additional very slow dispensing speed suitable for gel loading.
The device supports automatic and manual pipetting, multilayer aspiration and multiple dispensing to enable versatile dosing procedures. Reverse pipetting, a five-cycle mixing function and a titration mode are available. Stored routines simplify repeated operations.
A removable lithium-ion battery and a USB charging port support flexible use at the laboratory workstation. The pipette features a tip ejection button. For hygienic processing the disassembled piston assembly can be autoclaved at 121 °C for 20 minutes.
Typical applications include sample and reaction preparation, reagent aliquoting and gel loading in research, analytical and quality control laboratories.

Features

• Fine volume adjustment in 0.1 µL increments
• Motorized pipetting for reproducible dosing
• Five adjustable aspiration and dispensing speeds
• Multiple pipetting modes including multiple dispensing and mixing
• LCD with volume, mode and battery status indicators
• Removable lithium-ion battery and USB charging port
• Six memory slots for individual pipetting volumes

Scope of delivery

• 1 x Laboratory pipette / Pipette PCE-EPI 10
• 1 x Battery 3.7 V / 800 mAh
• 1 x Lubricant
• 1 x Power supply 5 V / 1 A
• 1 x USB cable UC-E6
• 1 x User manual

Technical characteristics / specifications

• Volume range: 0.2 ... 10 µL
• Accuracy (systematic error): 1 µL: ±2.50 % (±0.025 µL); 5 µL: ±1.50 % (±0.075 µL); 10 µL: ±1.00 % (±0.1 µL)
• Precision (random error): 1 µL: ±1.50 % (±0.015 µL); 5 µL: ±0.70 % (±0.035 µL); 10 µL: ±0.40 % (±0.04 µL)
• Display type: LCD
• Display size: 1.45 inch
• Memory capacity: 6 values (for individual pipetting volumes)
• Interface: Mini-B 8-pin
• Standard(s): ISO 8655
• Adjustment increment: 0.1 µL
• Number of channels: 1
• Menu language: English (GB), English (US)
• Protection class (device): IP42
• Power supply: 5 V DC
• Battery: 1 x 3.7 V LP-0620352P lithium-ion battery
• Capacity: 800 mAh
• Power: 2.96 Wh
• Operating conditions: 15 ... 40 °C, 0 ... 80 % r. H.
• Storage conditions: 5 ... 40 °C, 0 ... 80 % r. H.
• Dimensions (L x W x H): 84 x 40 x 185 mm
• Weight: 125 g
