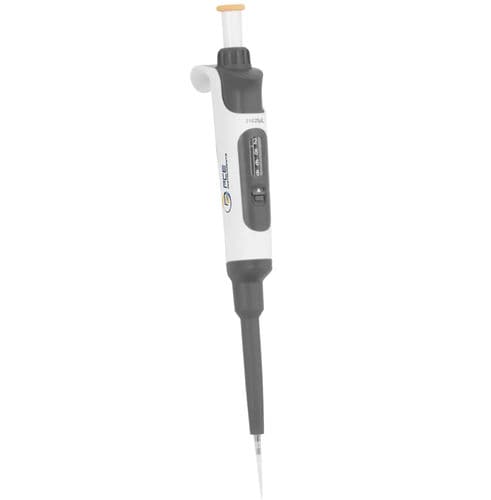

Single-channel micropipette PCE-FAP 2.5

air displacementfor laboratoryvariable-volume

Description
The single‑channel laboratory pipette PCE-FAP 2.5 is designed for precise and reproducible dispensing of minute liquid volumes in laboratory and clinical environments. With a usable range of 0.1–2.5 µL and a four‑digit volume display, it supports exact volume setting and ergonomic, fatigue‑reduced pipetting. The device is fully autoclaveable and UV‑sterilisable, and is made from chemical‑resistant materials for long‑term laboratory use. Calibration is performed according to ISO 8655 and each unit is supplied with an individual test and calibration certificate.

Features

• Test volumes: 0.25 µL, 1.25 µL, 2.5 µL
• Volume range: 0.1–2.5 µL
• Adjustment increment: 0.002 µL
• Single‑channel pipette for 2.5 µL tips
• High accuracy and precision (see specifications)
• Fully autoclaveable and UV‑sterilisable
• Calibration according to ISO 8655 with individual certificate
• 4‑digit analog volume display

Specifications
General technical data
Volume range: 0.1 ... 2.5 µL
Accuracy – Systematic error:
- 0.25 µL: 12.00 % ±0.030 µL
- 1.25 µL: 2.50 % ±0.031 µL
- 2.5 µL: 1.40 % ±0.035 µL
Precision – Random error:
- 0.25 µL: 6.00 % ±0.015 µL
- 1.25 µL: 1.50 % ±0.019 µL
- 2.5 µL: 0.70 % ±0.018 µL
Display type: Analog, 4‑digit volume display
Standard(s): ISO 8655‑2
Calibration: Yes (individual certificate)
Adjustment increment: 0.002 µL
Number of channels: 1
Operating conditions: 10 ... 40 °C, 10 ... 90 % RH
Storage conditions: 0 ... 50 °C, 0 ... 90 % RH
Dimensions (L x W x H): 245 x 25 x 60 mm
Weight: 73 g

Package contents

• 1 x Laboratory pipette PCE-FAP 2.5
• 1 x ISO‑8655 test/certification
• 2 x Pipette tips
• 2 x O‑ring seals
• 1 x Lubricant grease
• 1 x User manual
