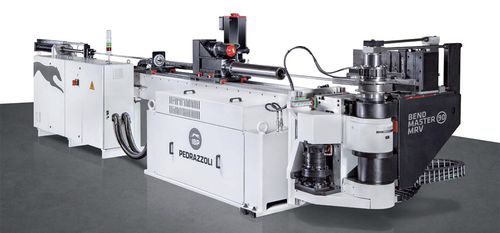

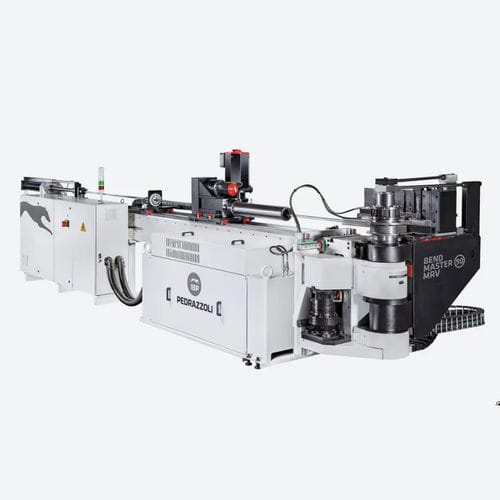

Electro-hydraulic bender BEND MASTER 90

electrictubeprofile

Overview
The electric tube bender BEND MASTER 90 by IBP PEDRAZZOLI integrates the in-house IMS control, a 10th generation Intel i7 processor and a touchscreen interface. The software supports optional modules and customer-specific customizations. Automatic loading and unloading systems enable autonomous operation and configurable I/O cards allow integration with dedicated work islands, feeding units or robots. Fast tooling change and intuitive operation ensure repeatable precision and reduced cycle times for series and small-batch production.

Features

• 6 controlled and synchronized axes: consistent repeatability and long-term precision.
• Bending with fixed and variable radius, supporting mandrel and compression bending.
• Automatic tooling and radius change for rapid setup.
• Booster on carriage enabling tight bending radii.
• IMS machine control: flexible, intuitive and user-friendly.
• Energy saving functions.

Advantages

• Bend capacity up to Ø90×4 mm (steel R=400 N/mm2).
• Machine engineered for heavy-duty operation.
• Balanced performance in speed, precision and durability.
• Support for multiple bend-die radii to produce complex components.
• Bend die return device included as standard.
• Rapid tooling setup: suitable for mass production and small batches; available in clockwise or counterclockwise multi-radius versions.
• IGES file import and immediate part feasibility analysis.
• Remote assistance via webcam; IMS platform available on PC.

Technical specifications

• Model: BEND MASTER 90
• Maximum bend capacity: Ø90×4 mm (steel R=400 N/mm2)
• Maximum bend radius: 400 mm
• Dimensions (L×W×H): 8000 × 2350 × 1950 mm
• Work plane height: 1310 mm
• Weight: 7400 kg
• Electric axis precision: ±0.1
• Carriage speed: 1100 mm/s
• Arm rotation speed: 64°/s
• Tube rotation speed: 287°/s
• Max tube length (front stop): 4000 mm
• Max tube length (rear stop): 5400 mm
• Control: IMS intelligent motion system (proprietary)
• Processor: 10th generation Intel i7
• Interface: Touch screen; IGES import supported; remote assistance available
