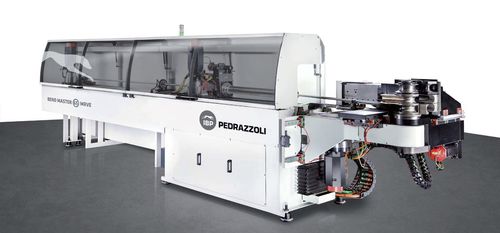

All-electric bender BEND MASTER 65tubeprofilebar
Add to favorites
Compare this product
Characteristics
- Operation
- all-electric
- Product handled
- tube, profile, bar
- Displacement
- horizontal
- Control
- automatic, CNC
- Associated function
- cutting
- Number of axes
- 11-axis
- Other characteristics
- compact, rugged, precision, mechanical, cold, automated loading/unloading, mandrel, multi-function, rotary draw
- Bending capacity
Max.: 65 mm
(2.56 in)65 mm
(2.56 in)Min.: 4 mm
(0.16 in)- Bending radius
230 mm
(9.06 in)- Bending length
5,000 mm, 7,000 mm
(197 in, 276 in)- Bending angle
190 °
- Accuracy
0.05 °
- Overall length
7,580 mm
(298 in)- Overall width
1,710 mm
(67 in)- Total height
1,900 mm
(75 in)- Tube diameter
Max.: 65 mm
(2.6 in)Min.: 5 mm
(0.2 in)
Description
YOUR PRODUCTIVITY HITS THE TARGET
> 10 completely electric controlled axis: constant repeatibility and precision in time.
> Clockwise and counterclockwise bending, with variable radius and multi-radius in same work cycle.
> High productivity
> Latest generation IMS machine control: flexible, intuitive, user-friendly.
> Energy saving
> Compact size bending head.
> Total protection of rear area by means of guarding.
> Automatic adjustment of tooling and rapid set-up.
> Modulation of thrust for tight radius bends.
> Available as multiradius or multiradius clockwise and counterclockwise version
> 11th Controlled axis: bend die return
> Punching
> IGES file import
> Immediate analysis of part feasibility
> Material elastic springback compensation
> Teleservice via webcam
> Handy Machine Operator Panel to manage all machine axis inside safety area
> Automation of process with loading and unloading
> IMS platform available for PC, tablet and smartphone
