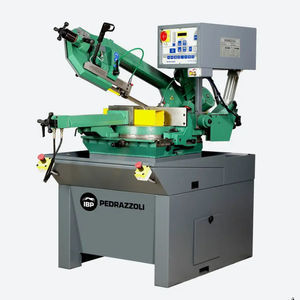

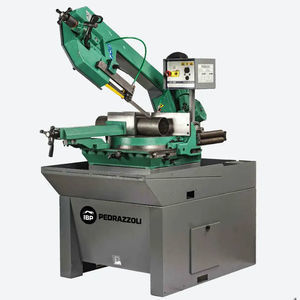

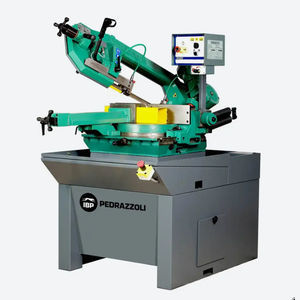

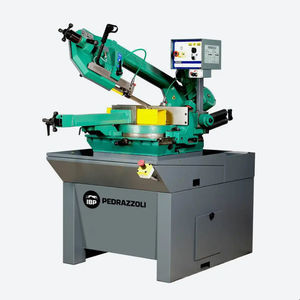

Band saw BROWN SN 300 NEWTON

horizontalfor metalsfor tubes

Description

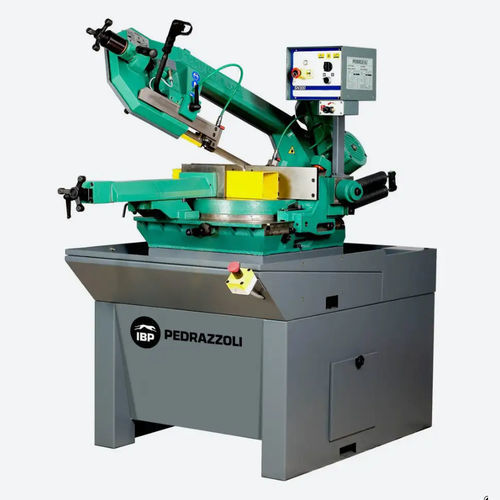

The BROWN SN 300 NEWTON IBP PEDRAZZOLI manual saw features cast-iron structural elements and a robust design that reduces resonance and vibrations during cutting. Two-speed three-phase drive (400 V – 50 Hz; other voltages available on request).

Advantages

• Gear reducer.
• NEWTON balancing device.
• Large circular table rotating with the bow to provide optimal support for the workpiece.

Cutting capacity
Round tubes:
45° left: 160 mm
0°: 220 mm
45° right: 200 mm
60° right: 130 mm

Square sections:
45° left: 120 mm
0°: 190 mm
45° right: 150 mm
60° right: 110 mm

Rectangular sections:
45° left: 160 x 130 mm
0°: 330 x 150 mm
45° right: 160 x 130 mm
60° right: 110 x 110 mm

Accessories upon request

• Micromist lubrication.
• MRP pneumatic quick clamp kit.
• Laser cutting indicator.
• Mechanical speed variator.
• Loading and unloading conveyors.

NEWTON DEVICE DESCRIPTION
M – Manual mode: Set the selector to M and turn the handwheel until the index aligns with 0 on the scale, tightening the balancing spring. Clamp the workpiece in the vice. Press start to perform the manual cutting cycle: the bow descends only while the start button is pressed. Adjust bow descent pressure with the flow regulator.

D – Dynamic mode: Set the selector to D and turn the handwheel until the index aligns with 40 on the scale, loosening the balancing spring. Adjust the end-of-cut limit switch. Clamp the workpiece, position the blade above it and press start. The bow descends by gravity; adjust descent pressure with the flow regulator. At the end of the cut the limit switch stops the motion. Raise the bow above the piece and replace the bar to be cut.

Technical data
Dimensions (Length x Width x Height): 1400 x 1500 x 1800 mm (Fermobarra) 870 x 1860 x 2100 mm (base)
Work plane height: 950 mm
Weight: 490 kg

Technical characteristics / specifications

• Machine type: Manual band saw with NEWTON device
• Construction: Cast-iron structural elements to reduce resonance and vibrations
• Speeds: Two-speed, three-phase (400 V – 50 Hz); other voltages available on request
• Table: Large circular table rotating with the bow for workpiece support
• Modes: Manual (M) and Dynamic (D) with adjustable bow descent pressure
• Cutting capacities: See cutting capacity section for round tubes, square and rectangular sections at specified angles
• Optional accessories: Micromist lubrication, pneumatic quick clamp kit, laser indicator, mechanical variator, conveyors
• Overall weight: 490 kg
• Work plane height: 950 mm
