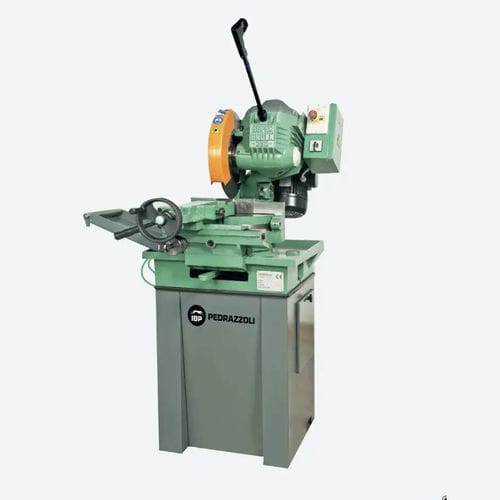

Circular saw SUPER BROWN 350/60 MRP

for metalsfor barsfor tubes

Description
The IBP PEDRAZZOLI SUPER BROWN 350/60 MRP Circular Saw with rapid pneumatic clamping and removable anti-burr jaw features a continuous speed variator for cutting all metals.

FEATURES

• Three phase (230 V 50 Hz or 400 V 50 Hz) with mechanical speed variator
• Mechanism for the rotation of head block for angled cuts up to 60° left and 45° right with blocking lever
• Pneumatic vice with removable anti-burr device
• Transmission by means of a double expandable pulley for speeds variable between 15 and 90 RPM
• Tilting head on adjustable self-lubricating bushings
• Gear reverser
• Emergency push button with key on control panel
• Safety switch for blade drive on lever hand grip
• Blade lubrication-cooling system with electric pump
• Coolant liquid tank with extractable pump for easy cleaning
• Complete protection guard with rapid blade change system
• Tube support with sliding roller
• Bar stop with millimetre ruler
• Circular blade ø 350 mm
• Instruction book for use and maintenance
• Set of keys for maintenance

Advantages

• The patented speed variator allows stepless adjustment of cutting speed adapting it to the specifications of the material and blade diameter, ensuring clean, burr-free cuts.

Cutting capacity
Round tubes
45° sx: 102 mm
0°: 102 mm
45° dx: 102 mm
60° dx: 90 mm

Square sections
45° sx: 90 mm
0°: 85 mm
45° dx: 90 mm
60° dx: 70 mm

Rectangular sections
45° sx: 120 x 60 mm
0°: 158 x 85 mm
45° dx: 120 x 85 mm
60° dx: 80 x 70 mm

Accessories upon request

• Micromist lubrication
• Roller Tables for loading and unloading
• Blade cleaner roller

Technical data
Dimensions (Length x Width x Height): 900 x 1550 x 1850 mm
Work plane height: 950 mm
Weight: 310 kg

Caractéristiques / spécifications techniques

• Brand: IBP PEDRAZZOLI
• Model: SSB 350/60 MRP (SUPER BROWN 350/60 MRP)
• Power supply: Three phase (230 V 50 Hz or 400 V 50 Hz)
• Speed variator: Mechanical, stepless adjustment
• Speed range: 15 to 90 RPM (via double expandable pulley)
• Blade diameter: 350 mm
• Head rotation for angled cuts: up to 60° left and 45° right (with blocking lever)
• Pneumatic vice with removable anti-burr device
• Tilting head on adjustable self-lubricating bushings
• Gear reverser included
• Emergency push button with key on control panel
• Safety switch on lever hand grip for blade drive
• Blade lubrication-cooling system with electric pump
• Coolant tank with extractable pump for easy cleaning
• Complete protection guard with rapid blade change system
• Tube support with sliding roller and bar stop with millimetre ruler
• Includes instruction book for use and maintenance and a set of maintenance keys
• Cutting capacities: see Cutting capacity block above for round, square and rectangular sections
• Overall dimensions and weight: 900 x 1550 x 1850 mm; work plane height 950 mm; weight 310 kg
