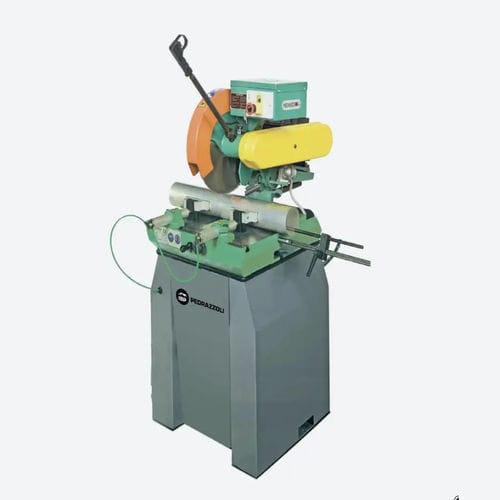

Circular saw PERRIS 350 MRP

for aluminummanual actuationwith cooling system

Product
Manual circular saw PERRIS 350 MRP for light alloys.

Features

• Single operational speed (three-phase) (230 V 50 Hz or 400 V 50 Hz)
• Head block rotation mechanism for angled cuts up to 45° left, 45° right and 45° off the vertical
• Two pneumatic vices adjustable lengthwise and laterally
• Two blade rotation speeds obtainable by inverting the pulleys
• Perfectly balanced head, tilting on shielded ball bearings
• Emergency push button with key on control panel
• Safety switch for blade drive on lever hand grip
• Blade lubrication-cooling system with membrane pump
• Complete protection guard with rapid blade change system
• Bar stop with millimeter ruler, placeable on either side of the machine
• Instruction book for use and maintenance
• Set of wrenches for maintenance
• Blade not included in standard equipment

Advantages

• Head block rotation mechanism enables angled cuts up to 45° left, 45° right and 45° off the vertical

Cutting capacity
Round tubes
45° left: 95 mm
0°: 120 mm
45° right: 95 mm
60° left: 50 mm

Square sections
45° left: 95 mm
0°: 110 mm
45° right: 90 mm
60° left: 50 mm

Rectangular sections
45° left: 130 x 55 mm
0°: 155 x 90 mm
45° right: 130 x 55 mm
60° left: 150 x 40 mm

Accessories upon request

• Copper cutting modification
• Widia blade
• Roller tables for loading and unloading with bar stop

Technical data
Dimensions (L x W x H): 750 x 1050 x 1750 mm
Work plane height: 790 mm
Weight: 215 kg

Characteristics / technical specifications

• Model: PERRIS 350 MRP
• Application: manual circular saw for light alloys
• Power supply: single operational speed (three-phase) for 230 V 50 Hz or 400 V 50 Hz
• Head rotation: angled cuts up to 45° left, 45° right and 45° off the vertical
• Pneumatic clamping: two pneumatic vices adjustable lengthwise and laterally
• Blade speeds: two speeds obtainable by inverting pulleys
• Lubrication-cooling: membrane pump
• Safety: emergency push button with key, safety switch on lever hand grip, complete protection guard with rapid blade change
• Standard accessories: bar stop with millimeter ruler, instruction book, set of wrenches; blade not included
• Optional: copper cutting modification, Widia blade, roller tables for loading/unloading
• Dimensions & ergonomics: footprint and work plane height as above
