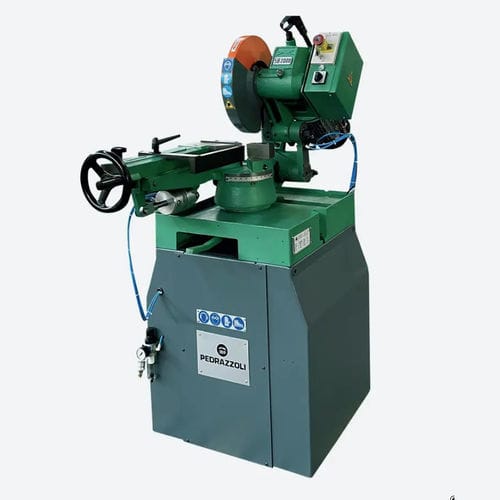

Circular saw SUPER BROWN 2000 MRP

verticalfor barsfor tubes

Product overview
The SUPER BROWN 2000 MRP IBP PEDRAZZOLI manual circular saw with pneumatic clamp satisfies diverse cutting requirements and is equipped with multiple adjustments for precision and repeatability.

Features

• 2-speed three-phase (230 V 50 Hz or 400 V 50 Hz)
• Pneumatic vice with rapid clamping
• Safety switch for blade drive on lever hand grip
• Complete protection guard with rapid blade change system
• Emergency push button with key on control panel
• Two-speed switch
• Tilting head on adjustable self-lubricating bushings
• Support crank allowing effective cutting of large (crank forward) and small (crank back) pieces
• Refrigerating liquid tank with immersion pump to reduce overall dimensions
• Bar stop with millimetre ruler
• Circular blade Ø 275 mm
• Instruction book for use and maintenance
• Set of keys for maintenance

Advantages

• Head rotation block mechanism for angled cuts up to 45° left and right with locking lever
• Lateral head movement unit for 45° vertical cuts left and longitudinal cuts
• 45° cuts off the vertical

Cutting capacity
Round tubes: 45° left: 80 mm; 0°: 80 mm; 45° right: 80 mm
Square sections: 45° left: 65 mm; 0°: 80 mm; 45° right: 70 mm
Rectangular sections: 45° left: 70 x 65 mm; 0°: 100 x 70 mm; 45° right: 75 x 70 mm

Accessories upon request

• Micromist lubrication
• Roller tables for loading and unloading

Technical data
Dimensions (L x W x H): 550 x 1200 x 1800 mm
Work plane height: 950 mm
Weight: 260 kg

Characteristics / technical specifications

• Model: SUPER BROWN 2000 MRP
• Power supply: 2-speed three-phase (230 V 50 Hz or 400 V 50 Hz)
• Pneumatic vice with rapid clamping
• Safety switch for blade drive on lever hand grip
• Complete protection guard with rapid blade change system
• Emergency push button with key on control panel
• Two-speed switch
• Tilting head on adjustable self-lubricating bushings
• Support crank for improved handling of both large and small pieces
• Refrigerating liquid tank with immersion pump
• Bar stop with millimetre ruler
• Circular blade diameter: 275 mm
• Instruction book for use and maintenance included
• Set of maintenance keys included
• Cutting capacities: round tubes up to 80 mm; square sections up to 80 mm (varies with angle); rectangular sections up to 100 x 70 mm (0°)
• Dimensions (L x W x H): 550 x 1200 x 1800 mm
• Work plane height: 950 mm
• Weight: 260 kg
