Band saw BROWN SN 420 NEWTON

verticalfor metalsfor bars

Product description

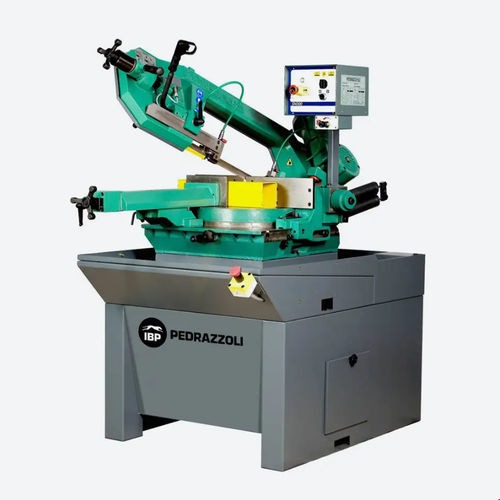

The manual band saw BROWN SN 420 NEWTON IBP PEDRAZZOLI features main machine components cast in iron for reduced resonance and vibration during cutting. Two-speed drive, three-phase (400 V, 50 Hz); other voltages available on request.

Advantages

• Gear reducer transmission for stable torque delivery.
• Newton balancing device with selectable Manual (M) and Dynamic (D) modes.
• Large circular work table rotating with the bow to ensure optimal support of the workpiece.

NEWTON DEVICE DESCRIPTION
M — Manual mode: Set the selector to M. Turn the handwheel until the index matches 0 on the scale to tighten the bow balancing spring. Secure the piece in the vice. Press the start button to perform the manual cutting cycle: the bow descent is activated only while the start button is pressed. Bow descent pressure can be adjusted using the flow regulator.

D — Dynamic mode: Set the selector to D. Turn the handwheel until the index matches 40 on the scale to loosen the bow balancing spring. Adjust the end-of-cut limit switch. Secure the piece in the vice, position the blade above the workpiece and press start. The bow will descend by gravity; descent speed is controlled by the flow regulator and the limit switch stops blade motion at the end of the cut.

Cutting capacity
Round tubes: 45° left: 170 mm; 0°: 280 mm; 45° right: 230 mm; 60° right: 150 mm
Square sections: 45° left: 150 mm; 0°: 270 mm; 45° right: 220 mm; 60° right: 150 mm
Rectangular sections: 45° left: 240 x 90 mm; 0°: 420 x 190 mm; 45° right: 230 x 150 mm; 60° right: 140 x 220 mm

Accessories upon request

• Micromist lubrication system.
• MRP pneumatic quick-clamp kit.
• Laser cutting indicator.
• Mechanical speed variator.
• Loading and unloading conveyors.

Technical data
Dimensions (Length x Width x Height): 1400 x 1500 x 1800 mm (bar stop); 870 x 1860 x 2100 mm (base)
Work plane height: 955 mm
Weight: 550 kg

Technical specifications

• Model: BROWN SN 420 NEWTON
• Construction: main machine components in cast iron for reduced resonance and vibration
• Drive: 2-speed, three-phase (400 V, 50 Hz); other voltages on request
• Newton device with selectable Manual (M) and Dynamic (D) modes
• Bow descent control via flow regulator; Dynamic mode allows gravity descent with limit-switch stop
• Gear reducer transmission
• Large circular rotating work/support table integrated with the bow
• Cutting capacities: see Cutting capacity block (round, square and rectangular sections at various angles)
• Accessories available: micromist lubrication, pneumatic quick-clamp kit, laser indicator, mechanical speed variator, conveyors
• Dimensions and weight: see Technical data block
