Product overview

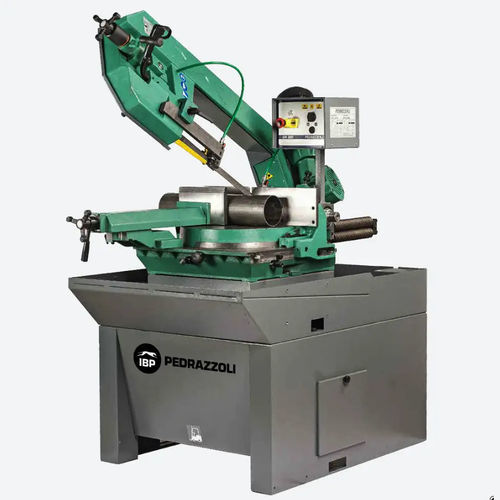

The manual band saw BROWN SN 420 IBP PEDRAZZOLI features main machine components in cast iron to reduce resonance and vibration during cutting operations. The machine is designed for metal cutting with adjustable bow position and a large circular support base for high perpendicularity accuracy.

FEATURES

• 2-speed three-phase (V 400 – 50 Hz; other voltages available on request)
• Vertical motor position to reduce rear footprint; transmission via worm drive gearbox in oil bath (ratio 1:40)
• Large circular support base with wide workpiece surface; rotates on a tempered ball track for smooth rotation and precise perpendicularity
• Adjustable bow position with eccentric bushing for 90° cuts and mechanical stops at 45° right and 45°/60° left
• Blade guides with widia (hard metal) plates and bearing supports on eccentric bushings
• Adjustable manual vice with rapid closing, handwheel and flat adjustable gib plate; positionable along the entire machine base
• Retractable and adjustable vice shoulders to reach maximum cutting capacity (420 x 190 mm at 90°) and ensure precise alignment
• Blade tightening device for constant and uniform blade tension
• Blade lubrication/cooling system with electric pump and two adjustable taps on the blade guides
• Control panel in an easily accessible position with ON/OFF switch, cutting speed selector (2 speeds), MANUAL/DYNAMIC cutting selector (for versions with Newton device), and emergency push button
• Blade start switch with "man present" guard and safety cover; low-voltage operation
• Hinged bow moved on a support with conical bearings

Advantages

• Widia blade guides for durable guidance
• Vice with quick approach, transversally positionable along the machine base; adjustable vice shoulders
• Loading & unloading conveyor (available on request)
• Digital display (available on request)

Cutting capacity
Round tubes: 45° left: 170 mm
0°: 280 mm
45° right: 230 mm
60° right: 150 mm

Square sections: 45° left: 150 mm
0°: 270 mm
45° right: 220 mm
60° right: 150 mm

Rectangular sections: 45° left: 240 x 90 mm
0°: 420 x 190 mm
45° right: 230 x 150 mm
60° right: 140 x 220 mm

Accessories upon request

• Micromist lubrication
• MRP pneumatic quick clamp kit
• Laser cutting indicator
• Mechanical speed variator
• Loading & unloading conveyors

Technical data
Dimensions (Length x Width x Height): 1400 x 1500 x 1800 mm (Fermobarra) 870 x 1860 x 2100 mm (base)
Work plane height: 955 mm
Weight: 550 kg

Characteristics / technical specifications

• Model: BROWN SN 420
• Construction: main components in cast iron
• Speeds: 2-speed cutting (electrical)
• Power supply: Three-phase (V 400 – 50 Hz; other voltages available on request)
• Transmission: worm drive gearbox in oil bath, ratio 1:40
• Maximum cutting capacity (at 90°): 420 x 190 mm
• Adjustable bow position: 90° via eccentric bushing; mechanical stops at 45° and 60°
• Blade guidance: Widia plates with bearing supports
• Vice: adjustable manual vice with rapid closing and lengthwise positioning; retractable/adjustable shoulders
• Blade tension: uniform blade tightening device
• Cooling/lubrication: electric pump with two adjustable taps
• Control: ON/OFF, speed selector, MANUAL/DYNAMIC selector, emergency stop
• Safety: blade start switch with man-present guard and protective cover; low-voltage controls
• Base: large circular support base on tempered ball track for precision
• Weight & dimensions as indicated above
