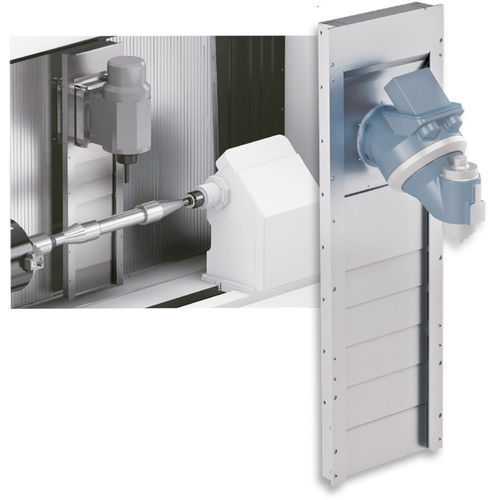

Steel telescopic cover EASY-ACCESS

for machine tools

This innovative cover can be totally dismantled and is ideal for protecting frontal and vertical axles in small to medium working centres, transfer machines, lathes and milling borers. Easy access to both the whole cover and machine tool: maintenance works can be carried out quickly, while the overall time required for all steps is minimized. Due to the “modular” design of this cover, individual damaged elements can be replaced without use of special tools. The cover is assembled weldless and can therefore be completely disassembled into its individual parts. This telescopic cover is made of highly resistant steel, the recommended maximum dimensions are one metre in width and 4.5 metres in height. This new telescopic cover is characterised by a closed design that is independent of the supporting machine structure. The passage of the work spindle can be sealed with PU wipers. Equipped with a synchronisation mechanism, the cover reaches speeds of up to 150 m/min and accelerations up to 2g. SNAP TELESCOPIC COVER MAINTENANCE: Quick inspection operations REMOVAL: The cover can be removed directly on the machine ASSEMBLY: Manual, without welded components MATERIAL: Very high strength steel DIMENSIONS: Up to 1000 mm in width and 4500 mm in height SPEED: Up to 150 m / min. and acceleration of 2g.
