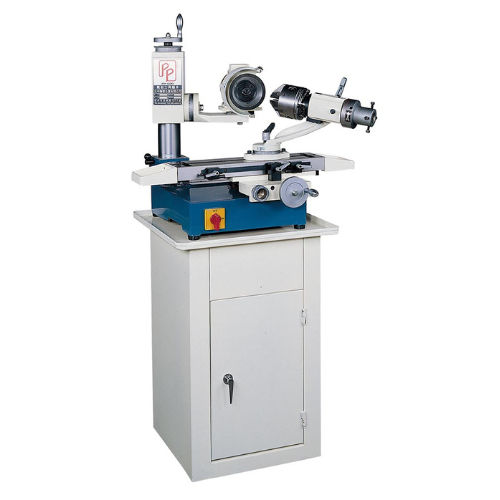

Precision sharpening machine PP-08

Precision sharpening machine - PP-08 - PEIPING PRECISION ENTERPRISE CO., LTD.
Precision sharpening machine - PP-08 - PEIPING PRECISION ENTERPRISE CO., LTD.
Precision sharpening machine - PP-08 - PEIPING PRECISION ENTERPRISE CO., LTD. - image - 2
Add to favorites
Compare this product

Characteristics

Other characteristics
precision
Spindle speed

2,900 rpm, 3,500 rpm
(18,221 rad.min-1, 21,991 rad.min-1)

Power

375 W, 560 W
(0.51 hp, 0.76 hp)

X travel

120 mm, 180 mm
(4.72 in, 7.09 in)

Y travel

185 mm, 230 mm
(7.28 in, 9.06 in)

Machine weight

150 kg, 210 kg, 285 kg, 359 kg
(330.69 lb, 462.97 lb, 628.32 lb, 791.46 lb)

Description

1. PP-08 series applies the leverage. It can grind the internal and external angle of gun drill. 2. Adopts the precision 6-jaw alw type chuck. It can clip stably and grind the 6 faces of gun drill. Any sizes could be ground and keep the accuracy of the center of drill without offset. Standard Accessories: 1. PP-08: Grinding Attachment for Gun Drill(Φ2mm~Φ32mm)-1 SET PP-08L: Grinding Attachment for Gun Drill(Φ5mm~Φ60mm)-1 SET 2. SDC Resinoid Grinding Wheel(Type:11A2)-1 PC 3. Grinding Wheel Flange-1 SET 4. Flange Wrench-1 PC 5. Tool Fixed Block-1 PC 6. Work Light-1 SET 7. Tools for General Use-1 SET 8. Work Cabinet-1 SET Optional Accessories: 1. SDC Resinoid Grinding Wheel
