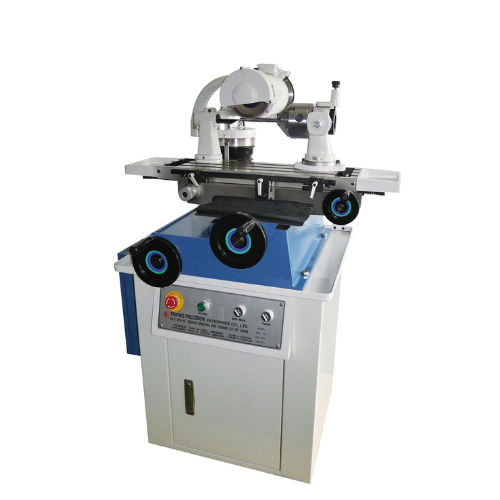

Manually-controlled sharpening machine PP-50Tsemi-automaticprecisionCBN
Add to favorites
Compare this product
Characteristics
- Control type
- semi-automatic, manually-controlled
- Other characteristics
- precision, CBN
- Spindle speed
2,900 rpm, 3,500 rpm
(18,221 rad.min-1, 21,991 rad.min-1)- Power
560 W
(0.76 hp)- X travel
180 mm
(7.09 in)- Y travel
230 mm
(9.06 in)- Machine weight
284 kg, 310 kg, 350 kg, 376 kg
(626.11 lb, 683.43 lb, 771.62 lb, 828.94 lb)
Description
1. Therea are two range of grinding capacity:Φ2~32mm and Φ5~60mm.
2. Suitable for Straight Flute of Nut Tap (Bent Shank), Spiral Point Tap, Hand Tap and Pipe Tap."
Standard Accessories:
1. PP-50T: Grinding Attachment for Straight Flute Tap(Φ2mm~Φ32mm)-1 SET
PP-50TL: Grinding Attachment for Straight Flute Tap(Φ5mm~Φ60mm)-1 SET
2. Grinding Wheel(Type:12A)-1 PC
3. CBN Electroplated Grinding Wheel(Type:12AR)-1 PC
4. Grinding Wheel Flange-2 SETS
5. Flange Wrench-1 PC
6. Index Plate(3.4.5 Flutes)-1 PC
7. Cooling System-1 SET
8. Work Light-1 SET
9. Tools for General Use-1 SET
10. Work Cabinet-1 SET
Optional Accessories:
1. SDC Electroplated Grinding Wheel
2. CBN Electroplated Grinding Wheel
3. X-axis Speed Control Motor with Reciprocation Device
