- PEIPING PRECISION ENTERPRISE CO., LTD.

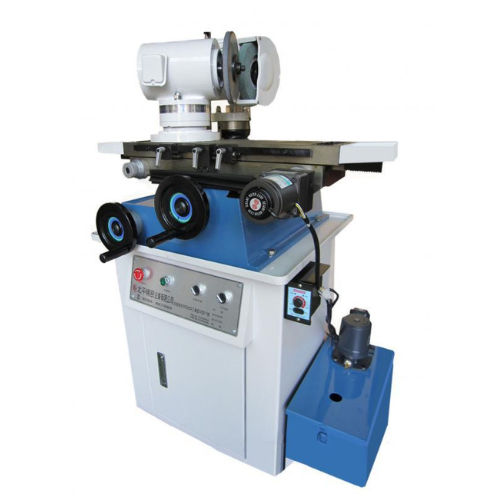

Semi-automatic sharpening machine PP-50Wmanually-controlledvariable-speed
Add to favorites
Compare this product
Characteristics
- Control type
- semi-automatic, manually-controlled
- Other characteristics
- variable-speed
- Spindle speed
2,900 rpm, 3,500 rpm
(18,221 rad.min-1, 21,991 rad.min-1)- Power
560 W
(0.76 hp)- X travel
180 mm
(7.09 in)- Y travel
230 mm
(9.06 in)- Machine weight
280 kg, 320 kg
(617.29 lb, 705.48 lb)
Description
Longitudinal travel of table - 230mm
Cross travel of saddle - 180mm
Vertical Adjustment of Wheel Head - 120mm
Rotary angle of wheel head - 360°
Rotary angle of up-down spindle - 360°
Working table area - 620 x 190mm
Size of Wheel - 180 x 25 x 31.75mm | 125 x 50 x 31.75mm
Motor - 3/4 HP, 110V / 220V / 380V
Net Weight/ Gross Weight - 280kgs / 320kgs
Packing Size (LxWxH) - 1,000 x 850 x 1,540mm
