4/8/16 ANALOG WITH 16/12/4 IP CAMERA INPUTS, 2.0 TB STORAGE, ENDURA ENABLED™

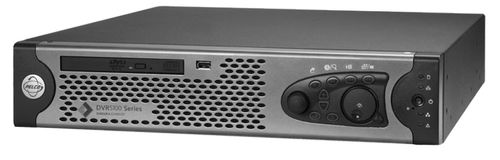

The DVR5100 Series hybrid video recorder (HVR) is an embedded, high-performance hybrid DVR, capable of recording up to 20 cameras at a combined 600/500 images per second (NTSC/PAL) at 4CIF resolution. The DVR comes with a choice of 4, 8, or 16 analog camera inputs, 16, 12, or 4 IP camera inputs respectively. The DVR5100 can be integrated into a fully distributed Endura® system, allowing for centralized monitoring and management in a scalable and expandable IP surveillance system. The DVR5100 provides all of these features, along with efficient configuration, intuitive operation, and cutting edge storage optimization technologies, in a mainstream DVR.
Features:
4, 8, or 16 Analog Video Inputs; and 16, 12, 4 IP Camera Inputs Respectively
Embedded Linux ® Operating System
Record Video up to 600/500 ips (NTSC/PAL) at CIF, 2CIF, or 4CIF Resolution, Programmable on a Per-Input Basis
MPEG4-Based Compression with Constrained Variable Bit Rate for Optimum Picture Quality and Low Storage Consumption
Endura ® System Integration Allows an Unlimited Number of DVR5100s to be Operated and Administered from an Endura Head-End*
Continuous, Scheduled, Motion, Alarm and/or Event Recording
Up to 2.0 TB of Internal Storage Including EnduraStor™ Optimization
DVR Configuration, Programming, and Operation from Front Panel Controls, USB Keyboard and Mouse, KBD5000, or Remote Client
Operating System on Compact Flash and Engineered Hard Drive Cooling System for Enhanced Reliability
