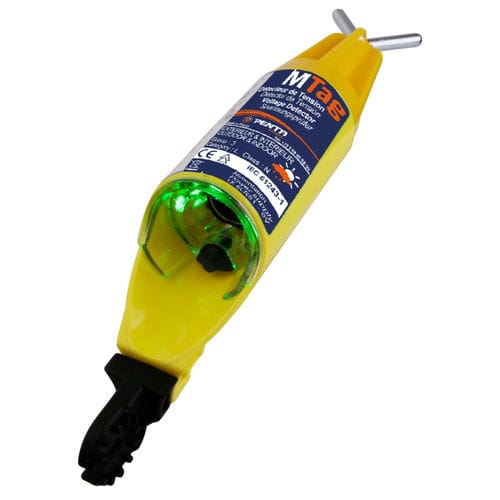

Medium-voltage detector MTAG series

AC voltageLEDindustrial

/ Standards • IEC 61243-1: VOLTAGE DETECTORS CAPACITIVE TYPE TO BE USED FOR VOLTAGES EXCEEDING 1 kV A.C • CE compliante / Use These voltage detectors are designed for "proving dead". making sure that nominal voltage is actually absent on a circuit in an HV distribution system between 1 kV and 69 kV (no-voltage verification): • The device will detect any nominal voltage on overhead lines andstations. • It will avoid detecting most induced voltages in order to allowgrounding operations. Advantages • Loud indication sound (the 100 dB at 1m) • The visual indication is visible in all positions • Direct access to the battery and sealed electronics compartment (IP65) • Permanent standby status with automatic wake up function • The presence of voltage within the calibrated range or above is indicated by a RED light and abeeping sound • Self test OK the OK status (ready for use) of the device is indicated by a GREEN light • The self test checks all the circuits. the reference detection level and the battery voltage • The "ready for use" state is indicated by the green indication for 2 minutes • A low battery level is indicated by an ORANGE light • Removable and interchangeable stick end fitting / Areas of activity Electrical distribution Industry Production Substation Electric traction Transport
