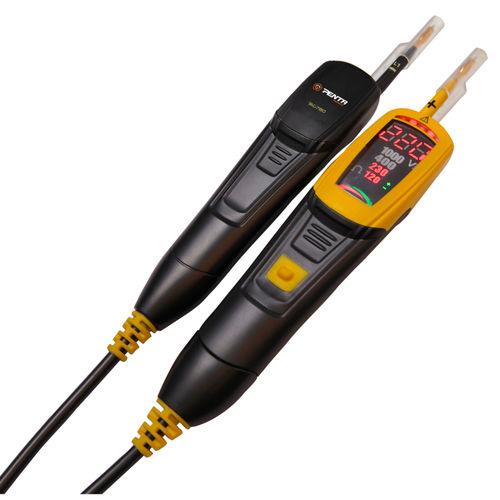

Low-voltage detector TAG780D series

digitalindustrialintegrated

LV Voltage detector with digital display Standards IEC 61243-3 Use Heavy duty voltage detector for checking the absence of voltage and giving voltage level indication on low voltage up to 1000V. This device provides additional features as : - Integrated self-test - Phase search in single-pole mode (any of the two contact tips maybe used) - Polarity display (-/+) - Continuity test (< 80Ω ) Technical specifications • Voltage range: 12 to 1000V DC and AC (15 to 60 Hz). • Digital display 3 to 999 V and voltage level indication : 127, 230, 400 and 1000V • Audible alarm indicating the presence of voltage with a different tone according to voltage level (discontinuous tone up to 230V and continuous tone above 400V). • Polarity indication (-/+). • Built-in self-test • Continuity testing (threshold 80Ω). • Phase identification in single-pole mode (either test probe may be used). • Phase rotation indication • Front light. • Protected against water and dust : IP65. • Protected against overvoltage CATIV 1000V. • Comes with 2 AAA batteries Advantages • Unique bright LED display can be read in sunlight • Ergonomically shaped to fit comfortably in the palm with gloves • A revolutionary IP2X system (retractable tip sleeve): “pull and hold” grip at back of device • Tip sleeve pulling is controlled, offering higher safety and visibility of contact area • Ultra flexible cord (no memory effect) • Watertight and dustproof device (IP65) • Device protected against over-voltage 1000V CAT IV for network operation.
