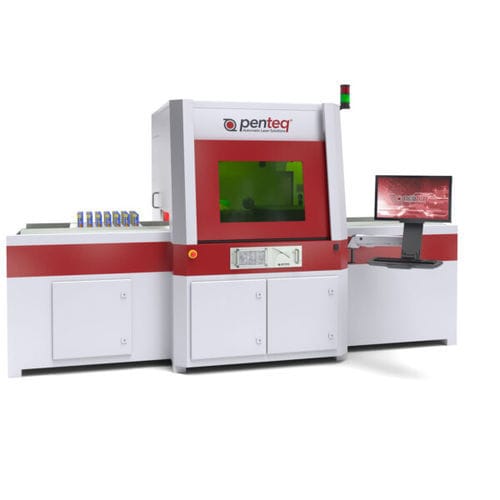

Laser marking system with flexible workpiece carriers
Application example laser labeling of tools
The Lasergravursystem is a solution of the Laser Class 1 for the economical labelling of large quantities of cutting plates and other workpieces from different materials.
Characteristics of the basic system:
• Laser Class 1 by closed housing in the working area
• Flexible Workpiece Carrier system
• Ergonomic insertion and removal position
• High throughput thanks to strong fiber laser
• Manual mode for production of individual orders between
Fully automatic marking of various workpieces in aluminium, stainless steel, brass, tungsten carbide, various plastics with optmialem material flow
By the execution of the transport line in U-shape with back conveyance can be inserted and removed from a position.
The workpiece carriers can be adapted to the products to be marked. The surfaces to be labeled can be flat or curved.
The unique design allows for maximum flexibility and has extremely compact overall dimensions.
The machine frame is designed in a sturdy steel welded construction and is suitable for long-term industrial use.
All components such as laser supply unit, industrial PC, laser smoke extraction are integrated in the system.
Flexible workpiece Carriers
A variety of shapes and dimensions can be supplied by customer-specific workpiece carriers. Only the place to be labeled must be located at the top of the marking area.
The simple creation of a wide variety of products enables a comprehensive Layoutkataloges in the laser system to be built quickly.
