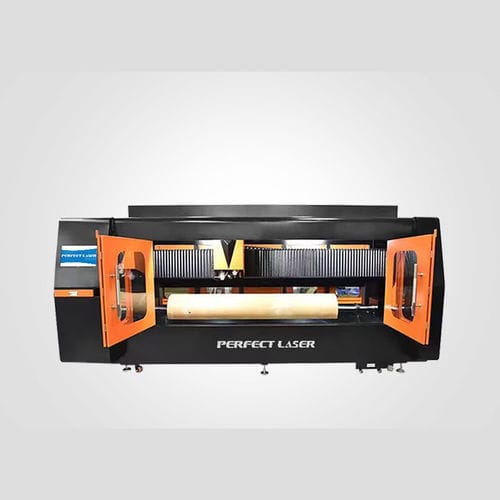

Rotary blade cutting machine PEC-3000M

diefor wooddie board

Product introduction
The PEC-3000M CNC rotary die-cutting machine is designed for precise processing of 13 mm and 15 mm arc wood templates. The dual-head configuration dedicates one head to rotary milling of wooden materials and the second head to drilling and cutting installation holes. The unit performs fully automatic milling and drilling in a single cycle, reducing handling and increasing throughput. The rotary milling process avoids the smoke associated with laser cutting and reduces operating costs while improving safety and working conditions.

Product features

• High-rigidity circular machine bed with annealing process to ensure long-term accuracy and stability.
• Fully enclosed design for effective dust isolation and a cleaner working environment.
• Low operating cost and fast return on investment.
• Low electrical consumption: approx. 2 kW·h per hour (typical).
• Low maintenance: main consumable is the milling cutter.
• Compact footprint: typical installation space 4.8 m (L) x 1.5 m (W).
• Environmentally friendly operation with no laser-generated smoke.
• Fully automatic drilling and milling complete the rotary die-cutting process in one pass.

Application
Used across the printing, packaging, die/mold and advertising industries. Suitable for circular die cutting, forming and drilling of rotary die-cutting boards and wooden templates.

Technical data
Product name: CNC rotary die-cutting machine
Model: PEC-3000M
Cutting length: 3000 mm
Cutting diameter: Φ200–800 mm
Cutting width: 1.42 mm
Positioning accuracy: 0.1 mm
Cutting speed: 20–25 m/h (for 13 mm rotary board)
Power supply: 380V 50Hz/60Hz, 3 phases
Cooling system: CW-3000 chiller for main motor
Air: Air compressor for dust blowing (no air dryer required)
Numerical control panel: LCD screen, light-touch keypad computer
Software supported: AutoCAD drawings
Graphic format support: AUTO CAD DXF files
EMS memory: 32 MB (supports offline operation)
Knife matching: Original 50 pieces
Assistant equipment: CW-3000 chiller and air compressor

Packaging & delivery

• Prompt shipment according to schedule.
• Professionally trained packing team and sea-/air-worthy packaging.
• Logistics arranged by experienced carriers.

Competitive advantages

• Custom solutions and quality control for export markets.
• Flexible payment terms and reliable after-sales service.
• Competitive pricing with short lead times.

Specifications / technical details

• Brand: Perfect Laser
• Model: PEC-3000M
• Certifications: CE / ISO / TUV / SGS
• Cutting length: 3000 mm
• Cutting diameter: Φ200–800 mm
• Cutting width: 1.42 mm
• Positioning accuracy: 0.1 mm
• Cutting speed: 20–25 m/h (13 mm board)
• Power: 380V 50Hz/60Hz, 3 phases
• Cooling system: CW-3000 chiller
• Air: Air compressor for dust blowing
• Numerical control panel: LCD, light-touch keypad
• Software supported: AutoCAD (DXF)
• EMS memory: 32 MB (offline operation supported)
• Knife matching: 50 original pieces
• Assistant equipment: CW-3000 chiller and air compressor
