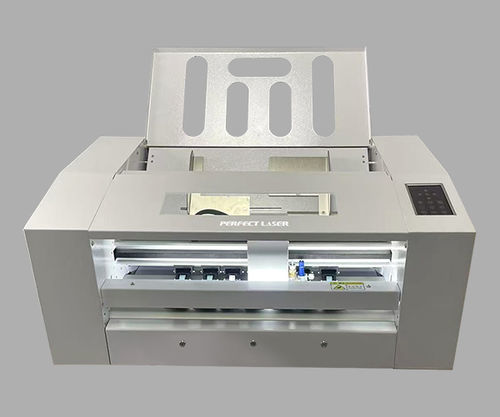

Cutter for labels PEC-350

Product Description
The desktop fully automatic servo dual-head die-cutting machine PEC-350 by Perfect Laser is engineered for precise cutting and die-cutting of custom-shaped labels and stickers. Designed for small studios, family workshops, educational labs and daily office use, the PEC-350 offers compact footprint and automated workflows to handle small-batch production and personalized runs efficiently.

Model
PEC-350

Machine Features

• High-precision photoelectric CCD system automatically detects registration marks for accurate cutting; edge-tracking deviation 0.2 mm over 5 m.
• Supports single-sheet and continuous roll feeding; integrated HD camera captures images, extracts contours and generates cutting paths automatically.
• Reliable mark detection on transparent and reflective materials; can detect marks close to the material edge to maximize usable area and reduce waste.
• Compatible with a wide range of materials: coated paper, paper labels, plastic films, PVC and similar substrates.
• 4.3-inch high-resolution color touchscreen with multilingual interface for simplified operation.
• Multiple interfaces: USB, flash drive, Ethernet port and Wi‑Fi for data transfer and remote control.
• Optional modules: laser engraving and lettering.

Application

• Packaging & printing, advertising & signage, automotive components labeling, office stationery and small-scale label production.

Applicable Materials

• Coated paper, paper labels, plastic films, PVC and other label-grade materials.

Packaging & Delivery

• Packaging: sea-worthy or air-worthy packing.
• Delivery time: typically 7 working days.
• Professional packing and logistics handling.

Commercial Information

• Minimum Order Quantity: 1
• Price: negotiable
• Payment Terms: L/C, D/A
• Supply Ability: 5000 units per year

Technical Data
Product Name: Desktop Fully Automatic Servo Dual-Head Die-Cutting Machine for Custom-Shaped Labels
Model: PEC-350
Max Cutting Speed: 1200 mm/s
Max Feeding Width: 350 mm
Max Cutting Width: 320 mm
Max Cutting Thickness: 80 g–400 g (white card and coated paper) / up to 1 mm
Positioning Method: CCD camera positioning
Margin Requirement: 5 mm on each side
Mark Detection Method: HD camera detection / circular mark / L-corner mark
Mainboard: 32-bit processor / high-speed microstepping
Interfaces: USB, flash drive, Ethernet port, Wi‑Fi (standard)
Drive System: Servo system
Operating Environment: +5°C to +35°C, relative humidity 30%–70%
Touchscreen Display: 4.3-inch HD touchscreen
Mechanical Accuracy: 0.025 mm
Plotting Command: DMPL / HP-GL
Repeatability Accuracy: < ±0.1 mm
Cutting Force: 50 g to 800 g (adjustable in 500 levels via digital encoder)
Compatible Systems & Output Software: Windows; supports CorelDRAW, Adobe Illustrator (AI), AIDcut, Photoshop (PS)
Power Supply: AC 90~240V / 50Hz–60Hz
Operating Modes: roll-fed / single sheet / multi-sheet automatic feeding / segmented cutting
Dimensions (L×W×H): 722 × 445 × 300 mm
Net Weight: 34 kg
Packaging Dimensions: 770 × 490 × 505 mm
Gross Weight: 46 kg

Highlights
Desktop fully automatic servo label die-cutting machine; special-shaped sticker cutting; dual-head precision cutting for small-batch production

Competitive Advantages

• Accurate CCD registration and high mechanical precision for consistent results.
• Flexible feeding modes and broad material compatibility.
• Compact desktop design suited to small production environments.
• Standard connectivity and optional laser engraving for extended capabilities.

Specifications

• Brand: Perfect Laser
• Model Number: PEC-350
• Max Cutting Speed: 1200 mm/s
• Max Feeding Width: 350 mm
• Max Cutting Width: 320 mm
• Max Cutting Thickness: 80 g–400 g / up to 1 mm
• Positioning Method: CCD camera positioning
• Mark Detection: HD camera / circular mark / L-corner mark
• Mainboard: 32-bit processor
• Interfaces: USB, flash drive, Ethernet, Wi‑Fi
• Drive System: Servo system
• Operating Environment: +5°C to +35°C; 30%–70% RH
• Touchscreen: 4.3-inch HD
• Mechanical Accuracy: 0.025 mm
• Repeatability Accuracy: < ±0.1 mm
• Cutting Force: 50 g–800 g (adjustable)
• Power Supply: AC 90~240V / 50Hz–60Hz
• Dimensions: 722 × 445 × 300 mm
• Net Weight: 34 kg
• Packaging Dimensions: 770 × 490 × 505 mm
• Gross Weight: 46 kg
