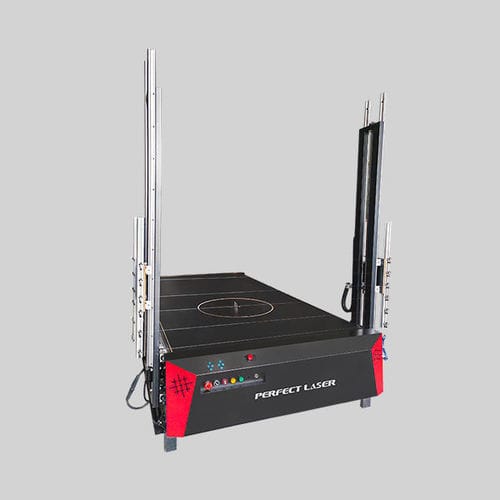

Wire cutting and engraving machine PE-3012

by heatinghot-wiremulti-wire

Product Description
The Automatic Vertical Table-type Hot Wire CNC 3D Foam Cutting Machine (Model: PE-3012) from Perfect Laser is a multi-axis CNC platform designed for precise 2D–4D foam cutting and selected 3D cuts without prior modeling. It integrates an intelligent control system to simplify operation and reduce setup time for series production.

Machine Features

• Gantry structure: reinforced sheet-metal frame with a 20 mm laminated worktop for stable vertical and horizontal alignment.
• Intelligent operation: direct reading of CDR/CAD files with built-in 3D simulation and programming-free workflow.
• High-precision transmission: ball screws and linear guides delivering ±0.05 mm transmission accuracy and long service life.
• Safety system: dual-servo emergency stop, breakpoint resume and IP54 insulation protection.
• Multi-dimensional processing: 4-axis linked rotating disc supporting 2D–4D shapes; optional multi-wire cutting module and additional horizontal axis available.

Applications

• Exhibition displays, urban sculptures and architectural decorative elements.
• Complex signage and lettering: multidimensional curved characters, spherical gradients, inclined illuminated letters.
• Precision casting and packaging: lost-foam casting patterns, 5-axis curved molds, shock-absorbing packaging inserts.

Technical Specifications

• Model: PE-3012
• Brand: Perfect Laser
• Origin: Hubei, China
• Certification: CE
• Common processable sizes: 2212 / 3012 / 3030 / 2525 (see detailed dimensions)
• Work surface: 20 mm multi-layer plywood, high flatness and heat resistance
• Transmission: ball screw and linear guide; X/Y double high-precision circular rails
• Cutting accuracy: process error 0.2–0.6 mm (depends on wire, environment, foam humidity)
• Control & files: CNC USB control, supports standard G-code; compatible with CDR, AutoCAD, CaxaCAD
• Drive & motor: 860 542 driver; high-speed stepper motor (86 57)
• Power supply: AC220V/50Hz
• Options: single- to multi-filament modules, optional additional horizontal axis

Packaging & Delivery

• Sea- or air-worthy packing with professional logistics handling.
• Prompt delivery subject to stock and order confirmation.
• Trained packing team and export-ready crating.

Competitive Advantages

• Configurable for single- or multi-wire cutting to match production needs.
• Integrated software workflow reduces setup time for series and custom runs.
• CE certified, international export experience and local technical support availability.
