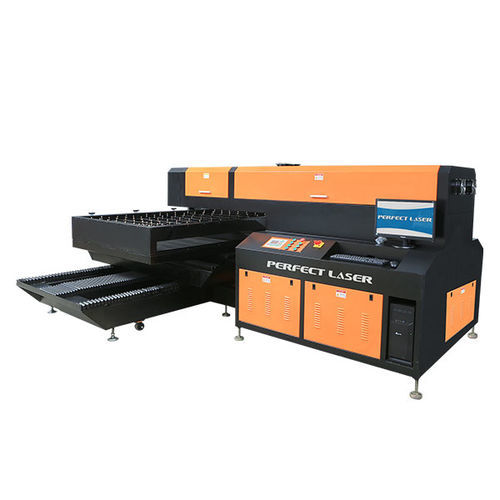

CO2 laser cutting machine PEC-1218P
SSfor acrylicsfor wood

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
SS, for acrylics, for wood
Applications
for industrial applications
Other characteristics
high-precision, high-speed, precision
X travel

Max.: 1,200 mm
(47 in)

Min.: 1 mm
(0 in)

Y travel

Max.: 1,800 mm
(71 in)

Min.: 1 mm
(0 in)

Maximum cutting height

Max.: 22 mm
(0.9 in)

Min.: 6 mm
(0.2 in)

Cutting speed

Max.: 0.04 km/h
(0.025 mph)

Min.: 0.025 km/h
(0.016 mph)

Laser power

400 W, 600 W

Description

PEG-1218P Single-head laser die cutting machine which greatly increases the cutting speed while ensuring quality. Adopted a new working process, the seam contact better with the body of knife, thus the rigidity, strength, and life of the laser die cutting machine have sharply risen. This type of laser die cutting machine with flexible design, easy maintenance and low power consumption, can be easily operated and applied to a wide range of materials. Features: 1. Adopted constant light path system which makes the length of light path in the process of operating unvarying; 2. The laser cutting head of the cardboard die cutting machine, equipped with an automatic height tracking system, can be operated on uneven-surface materials, guaranteeing cutting gap all same; 3. Machine tool of the cardboard die cutting machine treated in high-temperature heat, with large-scale gantry milling precision finishing, no deformation for 20 years; 4. Off-line control unit, directly adjusted related parameters of the cardboard die cutting machine in screen interface; 5. Closed optical path, clean lens environment to ensure the lens’ life of the laser stencil cutting machine; 6. Strong smoke extraction system, less dust during the laser stencil cutting machine work, a good working environment available. \ Applicable materials: The professional die cut machine is applied in wood, MDF, acrylic, stainless steel and so on. Application industry: The professional die cut machine is applied in printing, packaging, knife mold, advertising industry.

VIDEO
