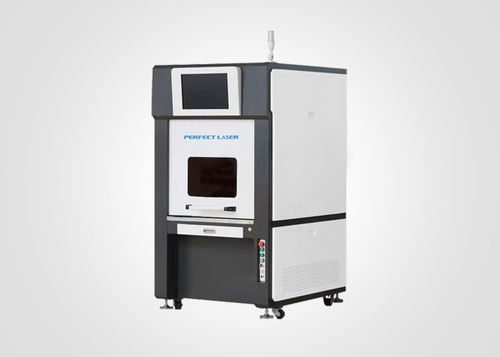

Laser welding machine PE-W100 W200

automaticlarge-diameterfor plastics

Product Overview
Scanning plastic laser welding machine for small flat plastic parts. Compact four-axis platform with closed-scanning galvanometer and selectable 100 W or 200 W laser power. Designed for precision, repeatable transmission welding of polymer assemblies.

Model
PE-W100 W200

Product Introduction
The system uses a quasi-synchronous laser transmission welding method with a large-diameter, high-speed scanning galvanometer and high-beam-quality laser to concentrate energy along the weld path. The material melts along the entire weld line and the laser supplies energy continuously until the required weld condition is achieved. An optional high-precision penetration measurement module is available to monitor and control weld quality.

Key Features

• Deflection scanning in X and Y driven by graphic data; maximum scan speed up to 2000 mm/s for high-efficiency precision welding.
• Workpiece remains stationary during welding; full weld line is plastified nearly simultaneously with controllable penetration depth.
• Optional welding penetration measurement for closed-loop quality control.
• High-precision digital programming of scan trajectories; suitable for components up to 200 × 200 mm (customizable).
• Lower tooling cost compared with ultrasonic welding in many applications.

Applications
Assembly and sealing of small flat plastic parts in medical devices, electronics housings, connectors, consumer goods and other industrial production requiring precise, repeatable welds.

Technical Data

• Welding method: Scanning (laser transmission welding)
• Laser power: 100 W / 200 W
• Wavelength: 915 nm / 976 nm
• Work pattern: Modulation, continuous
• Working area (stroke): 200 × 200 mm (customizable)
• Positioning accuracy: X/Y/Z ≤ 0.05 mm; U ≤ 0.1°
• Kinematic velocity: X/Y/Z: 100 mm/s; U: 100 rpm; max scan speed up to 2000 mm/s
• Welding line width: 0.5–3 mm
• Cooling: Air cooling / Water cooling
• Power supply: AC 220 V ±10% 50/60 Hz
• Max power dissipation: < 1500 W
• Operating environment: Temperature 10–35 °C; Humidity ≤ 85%
• Control: Industrial PC + four-axis motion control; CNC, teaching and graphics file support

Commercial Information

• Minimum Order Quantity: 1 unit
• Price: Negotiable
• Packaging: Sea-worthy or air-worthy packing
• Delivery time: 3–7 working days
• Payment terms: L/C, T/T, Western Union, MoneyGram
• Supply ability: 400 sets per month

Certifications & Origin

• Place of origin: China
• Brand: Perfect Laser
• Certifications: CE / ISO / TUV / SGS
