Pneumatic bending machine PEL-620

motorizedelectricfor plastic profiles

Product

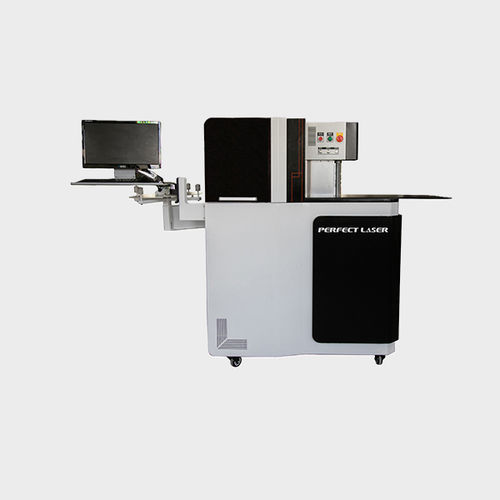

Industrial CNC Aluminium Channel Letter Bending Machine PEL-620 by Perfect Laser.

Model
PEL-620

Machine Introduction
The PEL-620 is engineered for production of channel letters and signage components. It integrates rolling feeding, pneumatic rotary slotting and dual-axis copper-roller bending to handle aluminium edges and polymer materials for borderless, wrapped and sponge-strip edge letters.

Machine Features

• High-precision feeding: roller-press continuous feeding with closed-loop encoder compensation; feeding accuracy ±0.1 mm for relevant radii.
• Efficient slotting: carbide rotary milling cutter with pneumatic lift and dual-guide positioning for clean, repeatable slots.
• High-quality bending: two-axis linked copper-shaft roller extrusion system for large- and small-radius forming; non-scratch rollers protect painted surfaces.
• Intelligent control: Lechuang four-axis control card with CBS4 system and one-click material presets for fast setup.
• Wide material compatibility: flat/aluminium edge/profiles and sponge-strip materials; thickness range 0.5–1.2 mm; workable widths 30–200 mm.
• Robust drive: stable motor configurations ensuring consistent output across materials.

Machine Application
Designed for signmakers and signage workshops to produce channel letters (borderless, aluminium-wrapped, sponge-edge and similar profiles) used in commercial and architectural signage.

Technical Data
Product Name: Industrial CNC Aluminium Channel Letter Bending Machine
Feeding system: Rolling continuous feeding (closed-loop self-test)
Slotting system: Pneumatic lifting rotary milling cutter (reversible swing knife)
Bending system: Two-axis linkage copper-shaft roller extrusion (non-scratch)
Driving motor: Stepper & DC motor combinations available
Equipment weight: 350 kg
Dimensions: Body L2150 × W650 × H1560 mm
Material thickness: 0.5 - 1.2 mm
Material width: 30–200 mm
Support format: AI / PLT / DXF
Feeding accuracy: Length ±0.1 mm; Radius > 7.5 mm
Control card: Perfect Laser (Lechuang / CBS4)
Input voltage: 220V 50Hz 3KW
Air pressure: 0.6–0.8 Mpa

Packaging & Delivery

• Sea-worthy or air-worthy professional packing.
• Typical lead time: 5–10 working days.
• Handled by specialized logistics partners.

Payment & Supply
Price: Negotiable. Minimum Order Quantity: 1. Payment terms: L/C, T/T. Supply ability: 200 units per year.

Competitive Advantages

• Integrated feeding, slotting and bending for efficient sign production.
• One-click presets for common materials to reduce setup time.
• Copper roller system preserves paint finish for high-quality results.
• After-sales support and flexible commercial terms.

Technical specifications

• Brand: Perfect Laser
• Model: PEL-620
• Origin: China
• Certification: CE
• Weight: 350 kg
• Dimensions: L2150 × W650 × H1560 mm
• Material types: Flat aluminium, flanged/edge aluminium, profiles, sponge strip
• Material thickness: 0.5–1.2 mm
• Supported formats: AI / PLT / DXF
• Control: Perfect Laser (Lechuang 4-axis / CBS4)
• Power: 220V 50Hz 3KW
• Air pressure: 0.6–0.8 Mpa
• MOQ: 1
• Delivery time: 5–10 working days
