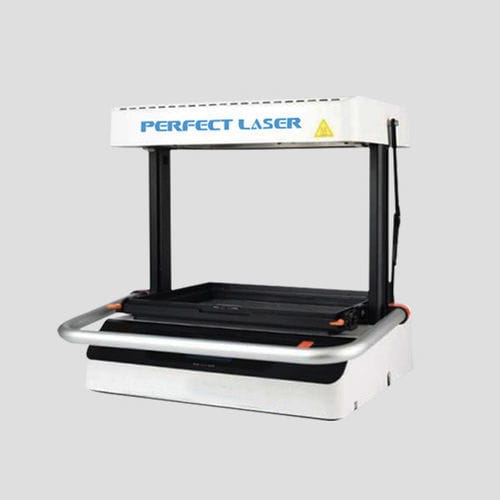

Plastic film thermoforming machine PE-2820

PPABSprototyping

Product overview
The Desktop Automatic 3D Plastic Vacuum Thermoforming Machine (Model: PE-2820) is a compact bench-top thermoforming unit for prototyping and small-batch production. It integrates a high-efficiency ceramic heater and a built-in vacuum pump to enable fast heating and reliable vacuum forming of thermoplastic sheets.

Machine features

• Model: PE-2820 with PLC control and preset heating programs
• Ceramic heater: 1.32 kW for rapid sheet heating
• Built-in vacuum pump: no external vacuum required
• Sheet capacity: supports 0.2–3.0 mm thickness
• Forming area: 280×200 mm; forming film size: 330×250 mm
• Max mold height: 335 mm; max forming height: 200 mm; max draw depth: 200 mm
• Real-time temperature: high-precision IR sensor sampling up to 10 times per second
• User interface: menu material selection and one-button start

Applications

• Suitable for prototyping and small-scale production in packaging, displays, lighting components, electronic housings, model-making, props, and industrial design

Compatible materials

• HIPS, ABS, PETG, PVC, PMMA, PC, PE, PP, Kydex, EVA foam and similar thermoplastics

Commercial & supply information

• Minimum Order Quantity: 1 unit
• Packaging: sea-worthy or air-worthy packing
• Delivery time: 7 days (subject to stock)
• Payment terms: L/C, D/A
• Supply ability: 5000 units/year

Packaging & delivery notes

• Professional packing and logistics; expedited shipping when available

Competitive advantages

• Compact desktop footprint for space-limited workshops
• Integrated heater and vacuum simplify installation and setup
• Preset programs reduce setup time for common materials

Technical data

• Product name: Desktop Automatic 3D Plastic Vacuum Thermoforming Machine
• Model: PE-2820
• Core component: PLC
• Heating power: 1.32 kW
• Automation: Yes
• Overall dimensions (W×H): 400×405 mm
• Forming film size: 330×250 mm
• Forming area: 280×200 mm
• Max. mold height: 335 mm
• Max. forming height: 200 mm
• Max. drawing depth: 200 mm
• Forming film thickness: 0.2–3.0 mm
• Applicable plastics: HIPS/ABS/PETG/PVC/PMMA/PC/PE/PP/Kydex/EVA foam
• Weight: 10 kg
• Input voltage: 100–240 V
• Frequency: 50/60 Hz
• Noise level: 65 dB
• Max heater temperature: up to 250°C
